Ducting & Spouting

AQUA ’s dust and fume control division specialize in designing, installing and maintaining air pollution control equipment across a broad range of applications and industries. We ensure the safe removal of dust, mist, fumes and other harmful particles (contaminants), to provide a clean safe working environment for your team.

High-quality products built to perform and provide peace of mind throughout the life of the product.

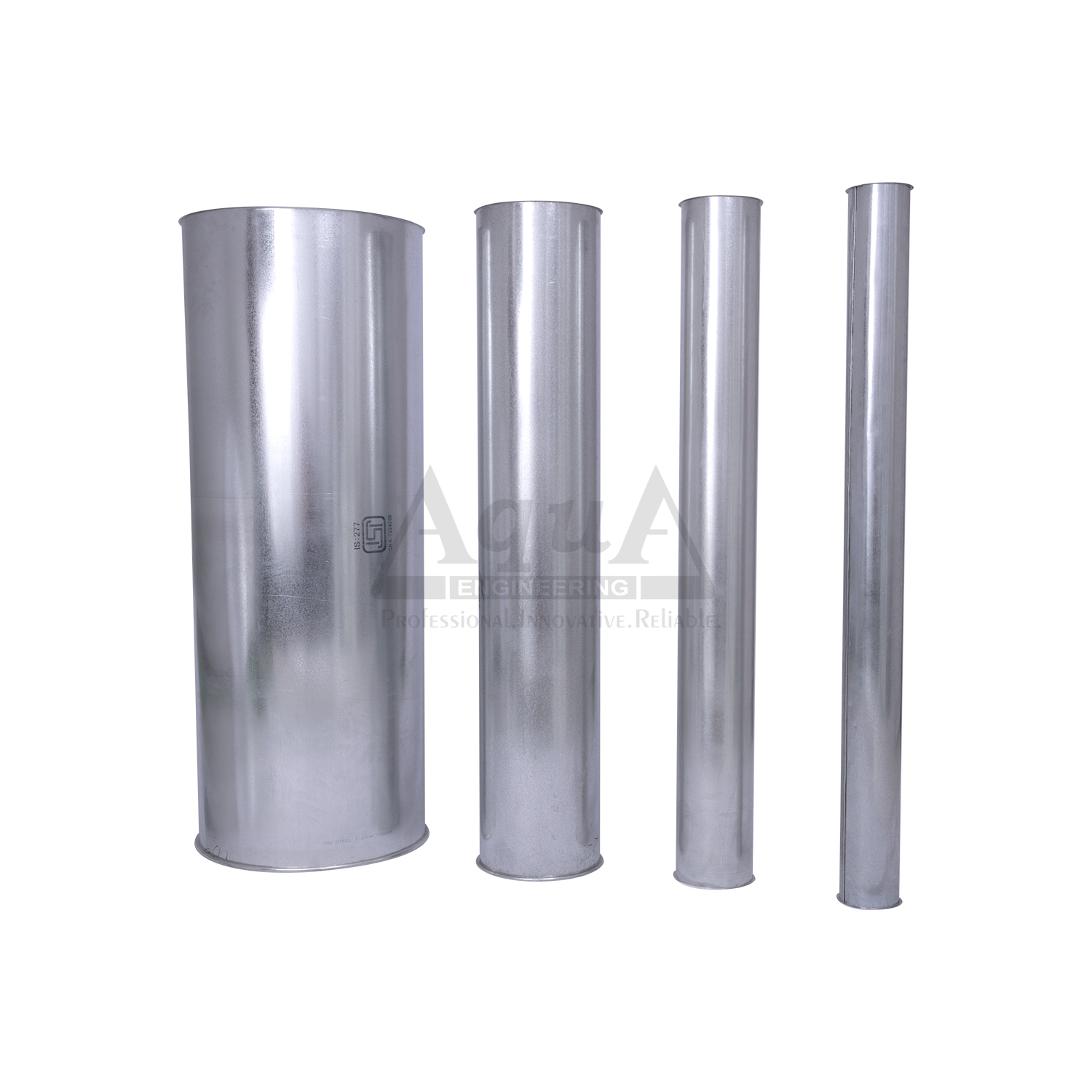

At AQUA, we can design and install ducting and spouting for a variety of industrial applications.

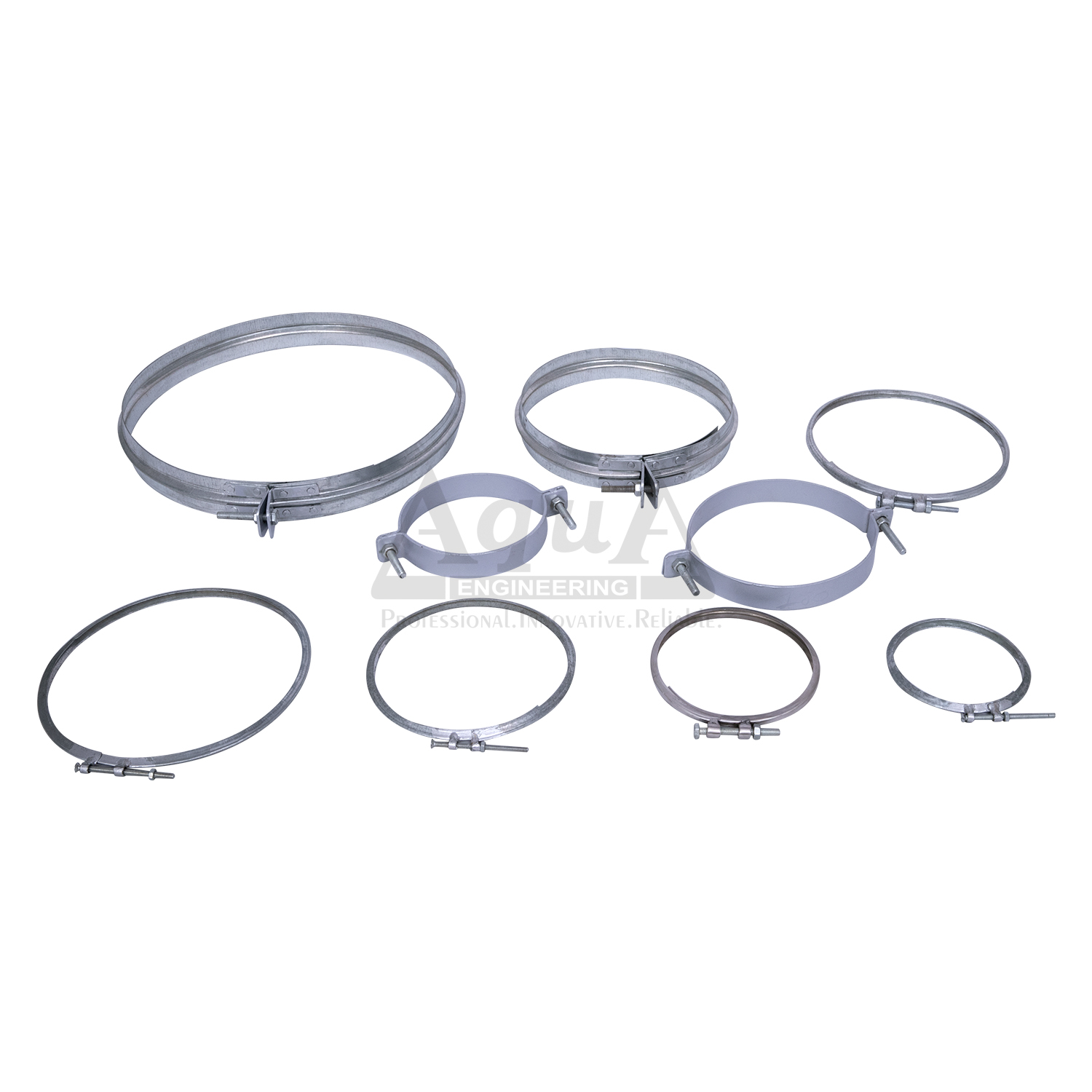

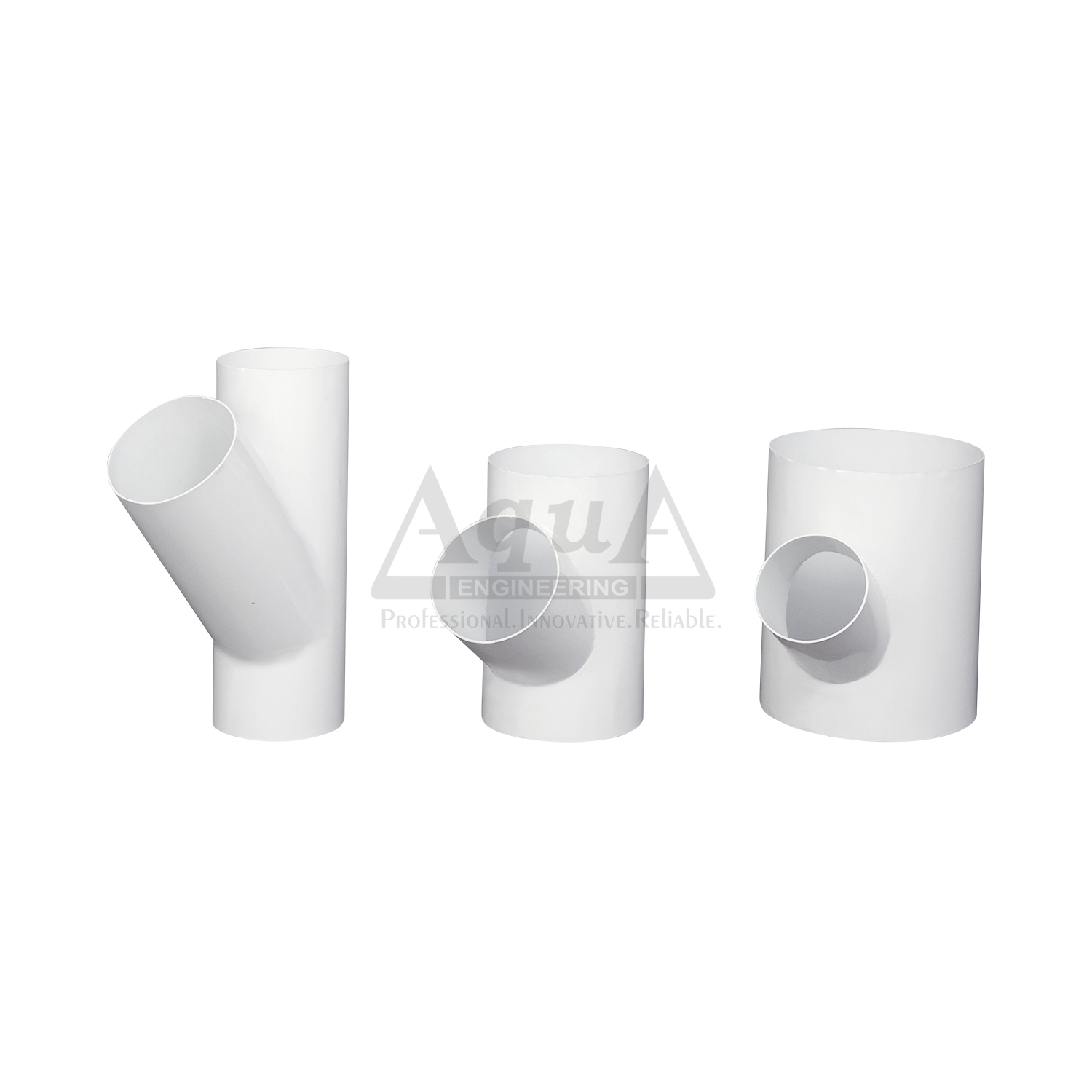

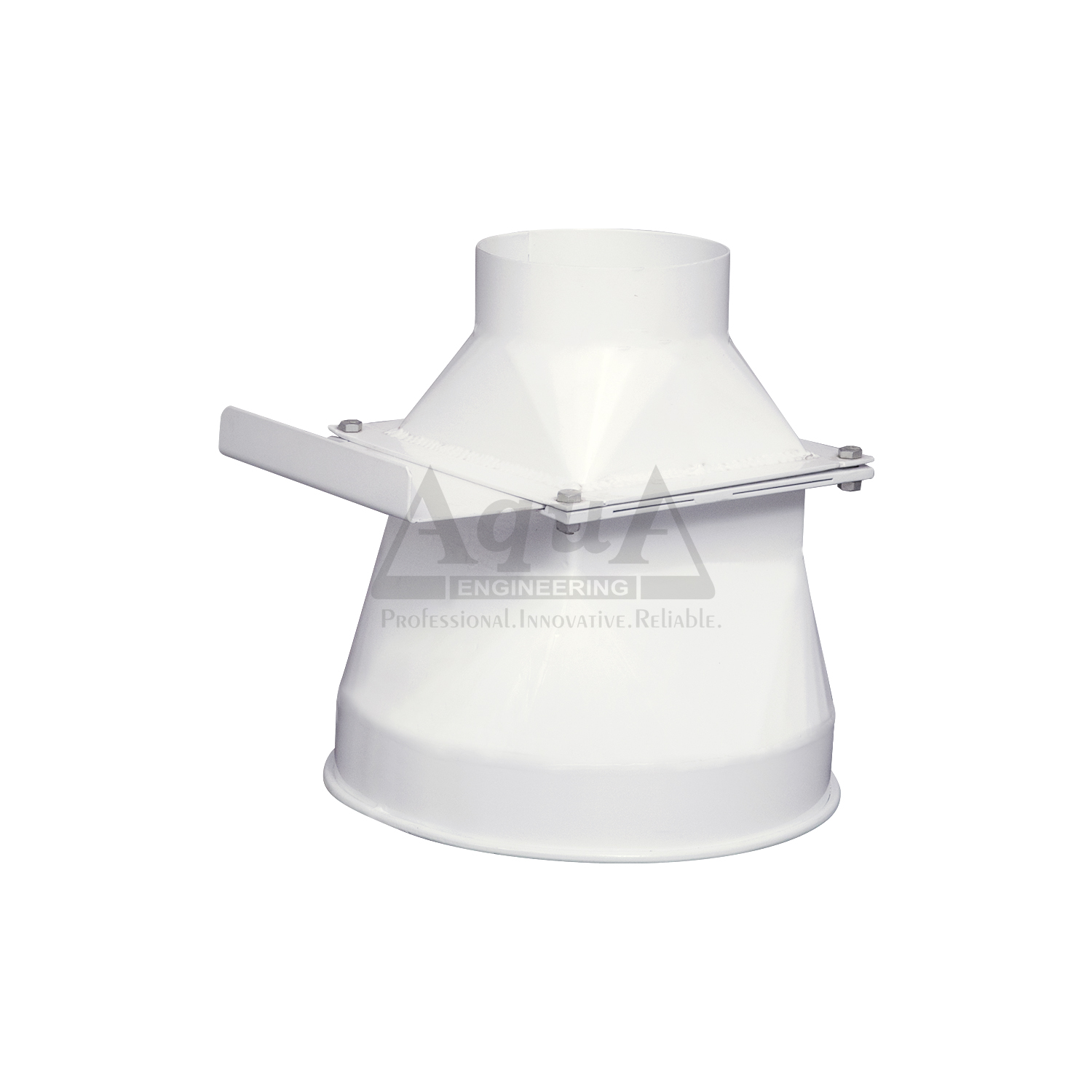

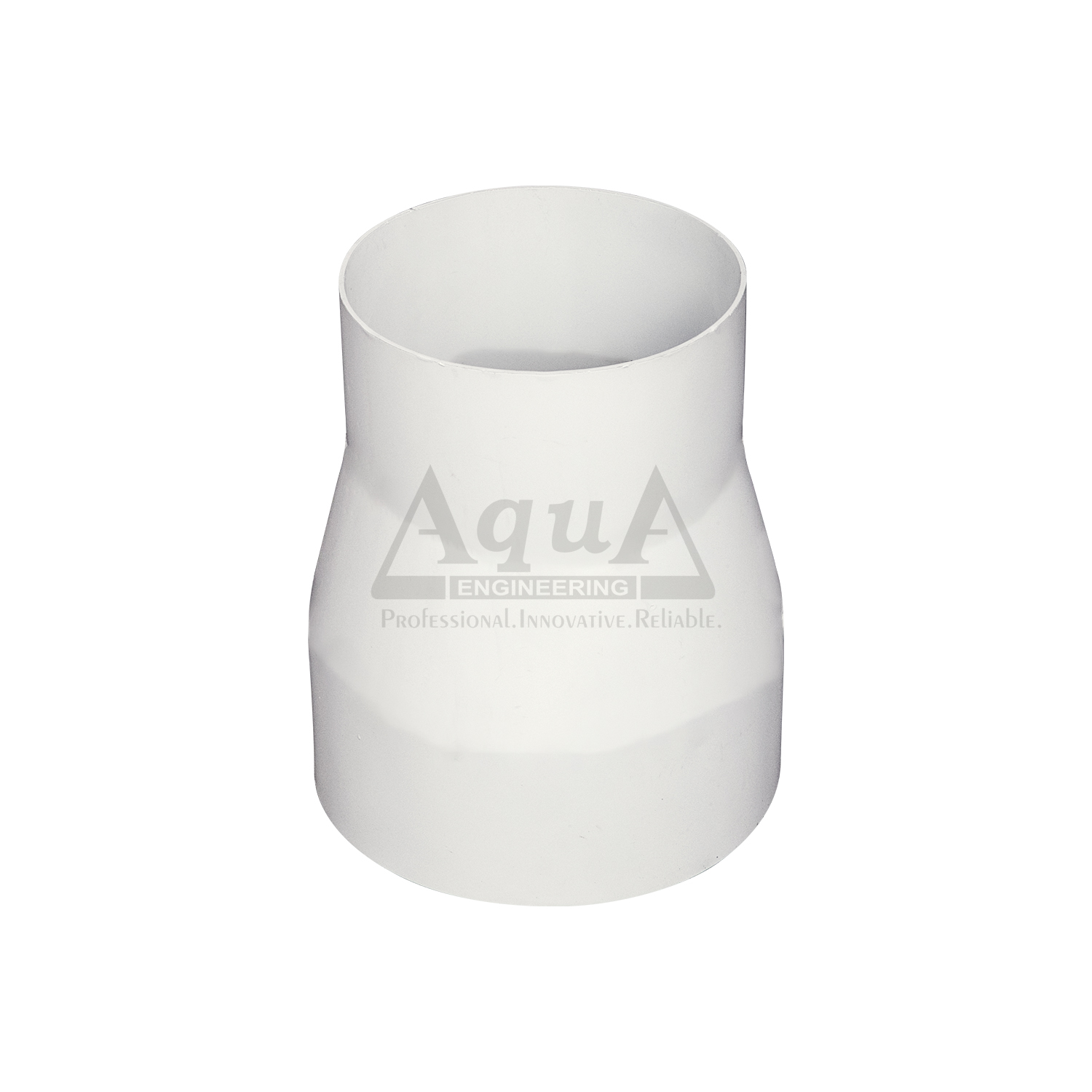

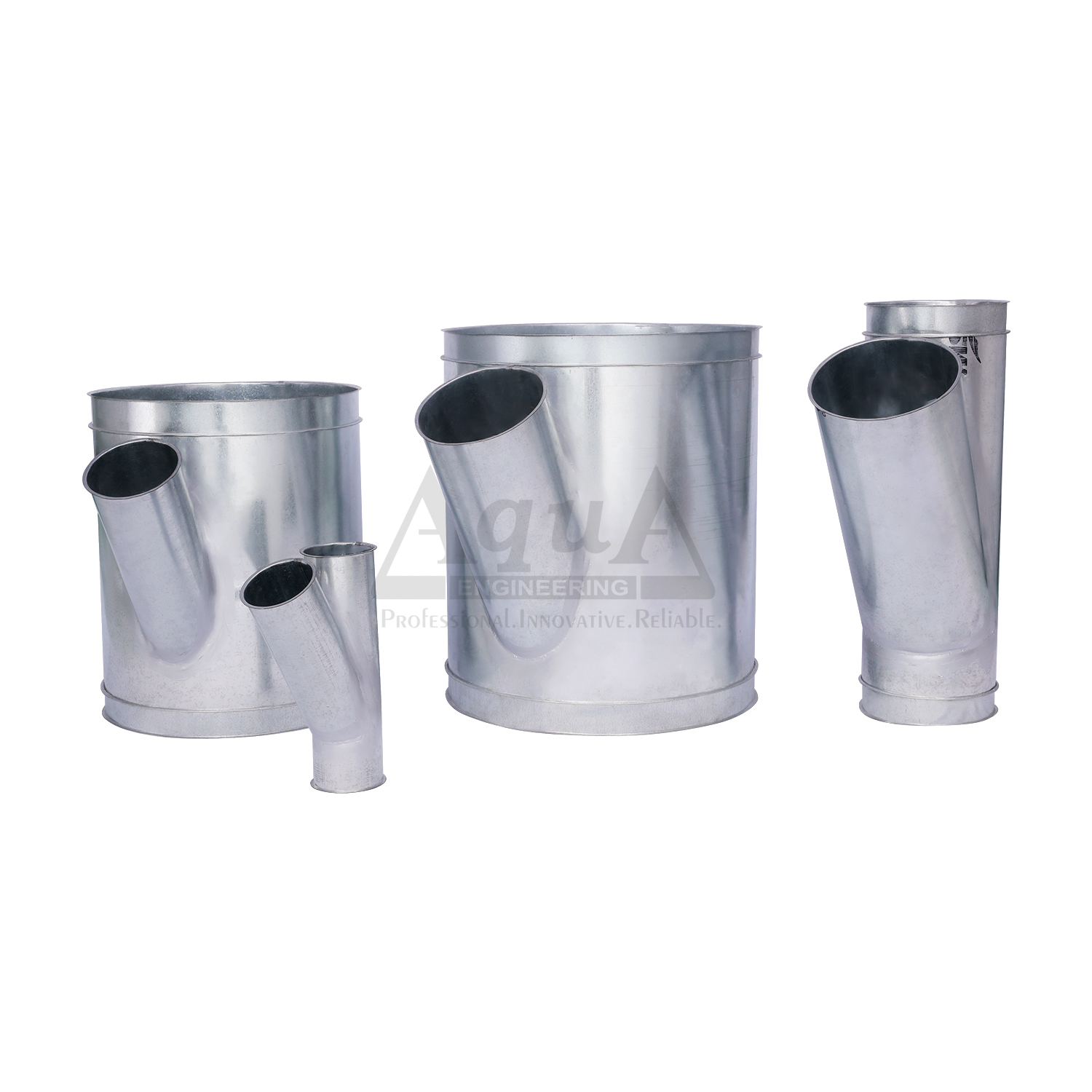

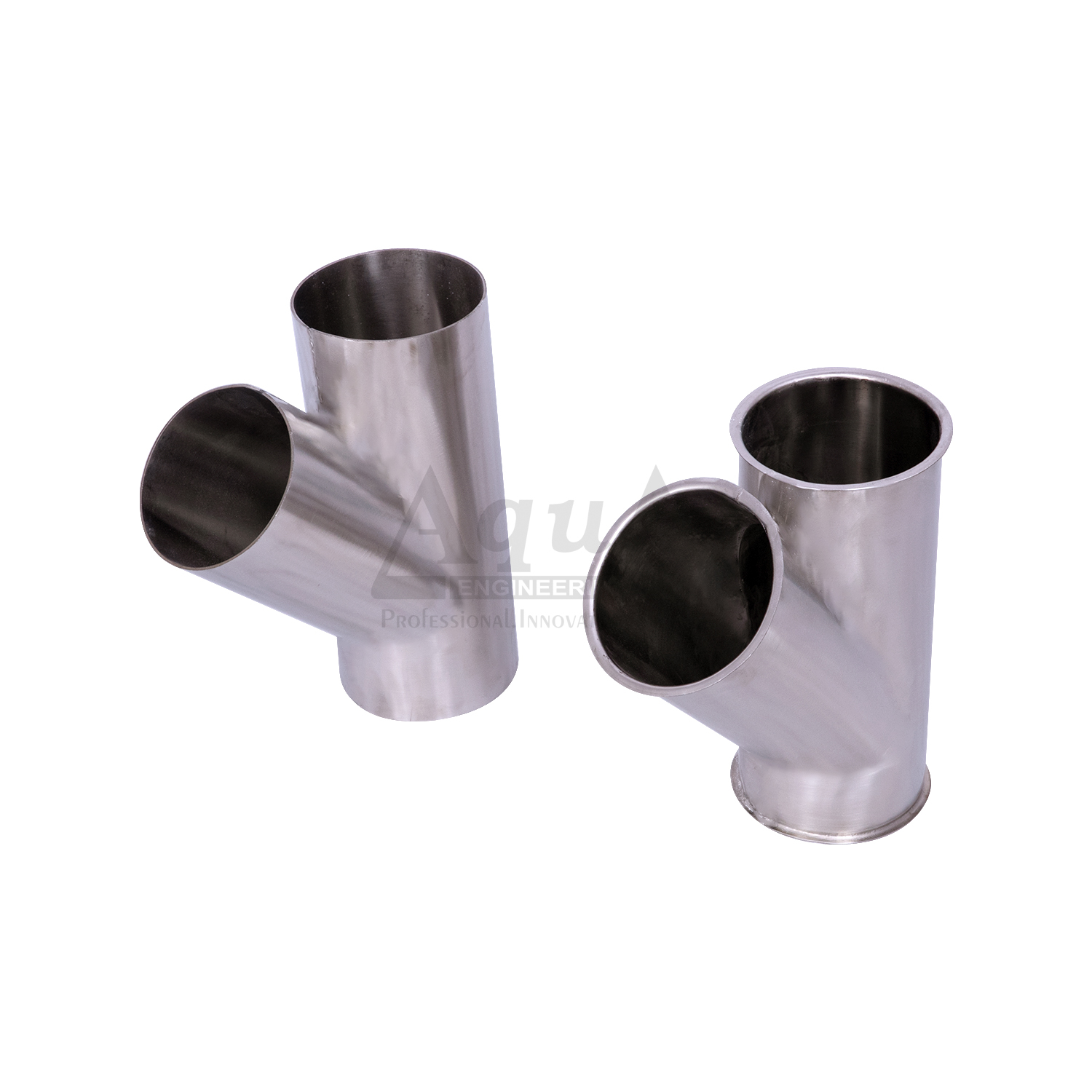

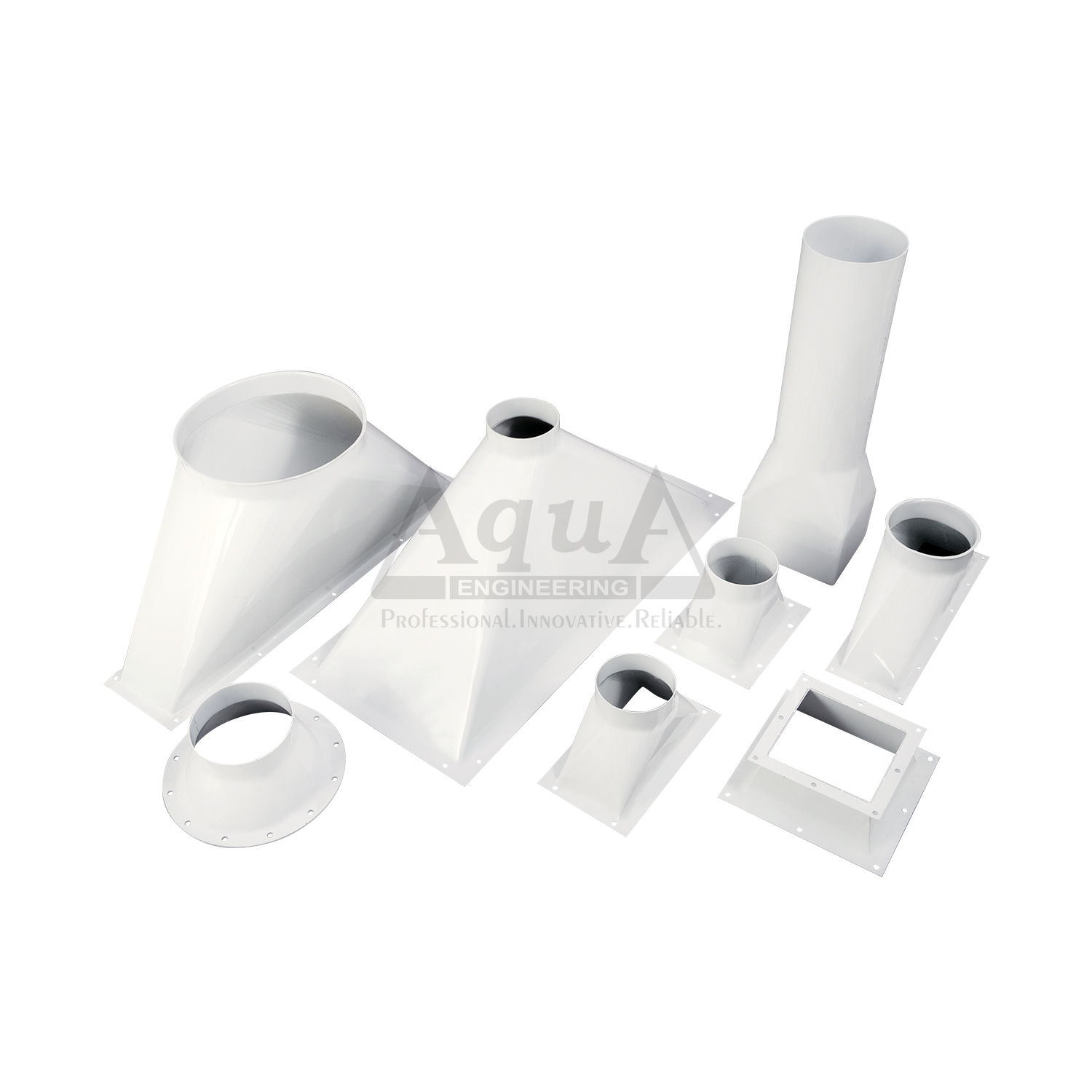

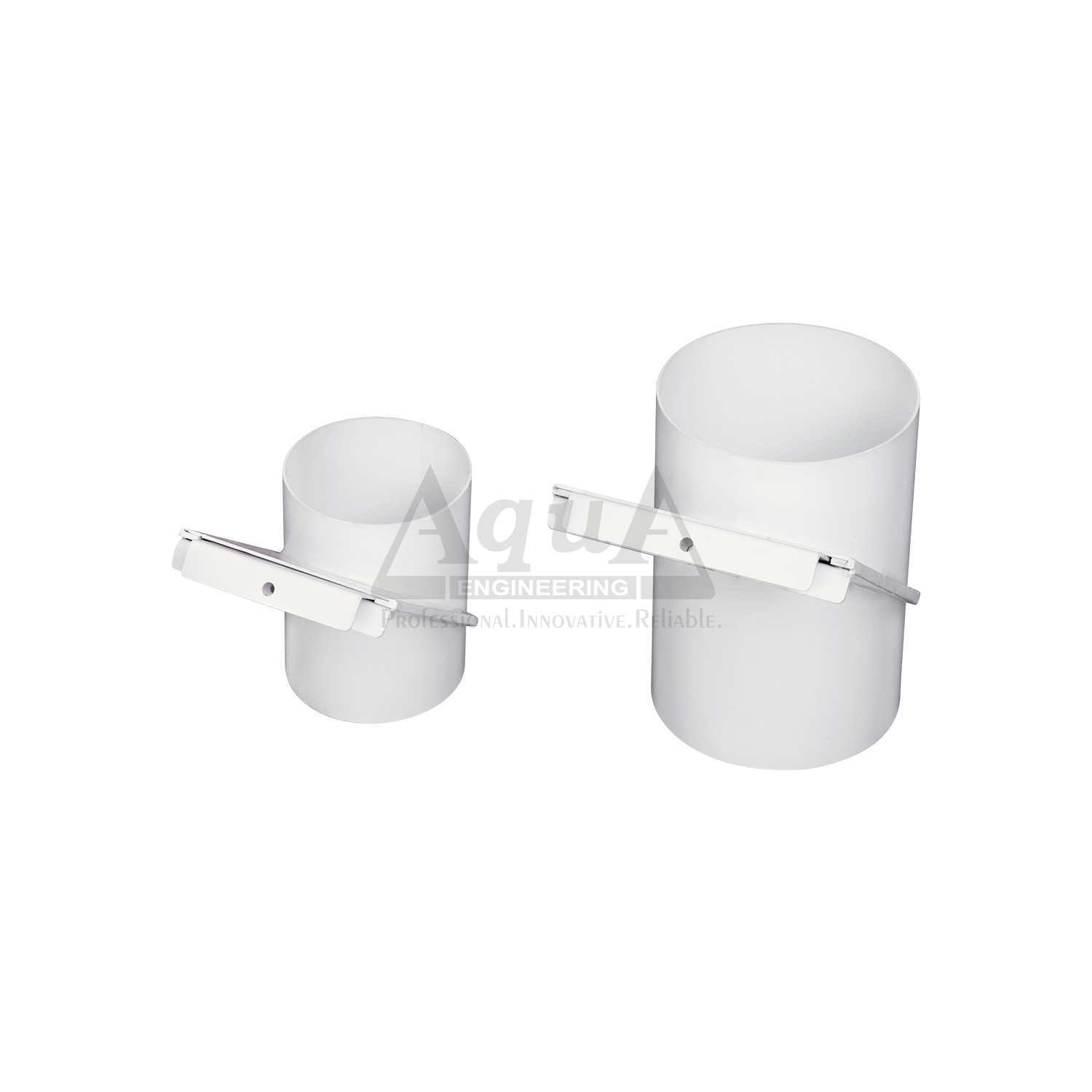

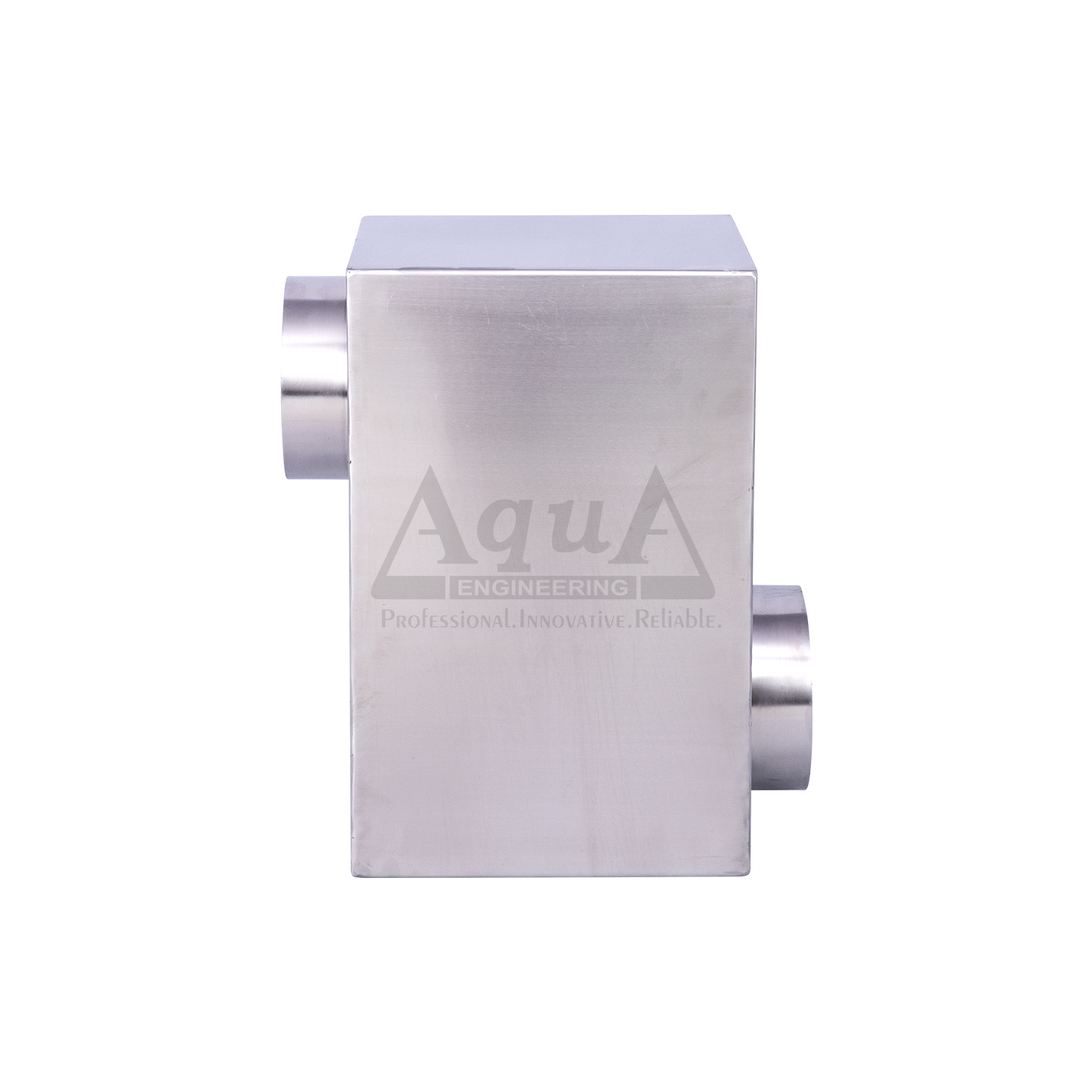

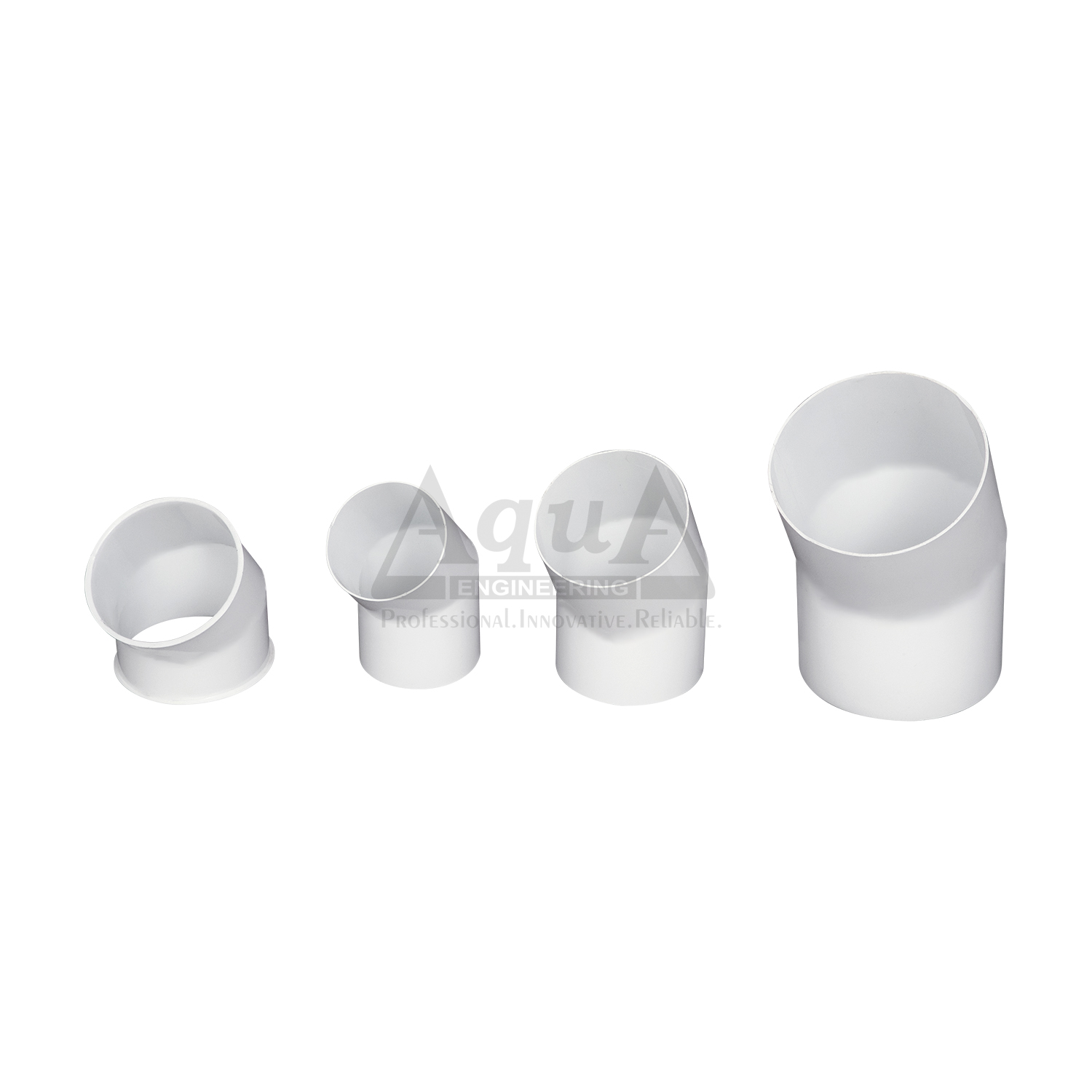

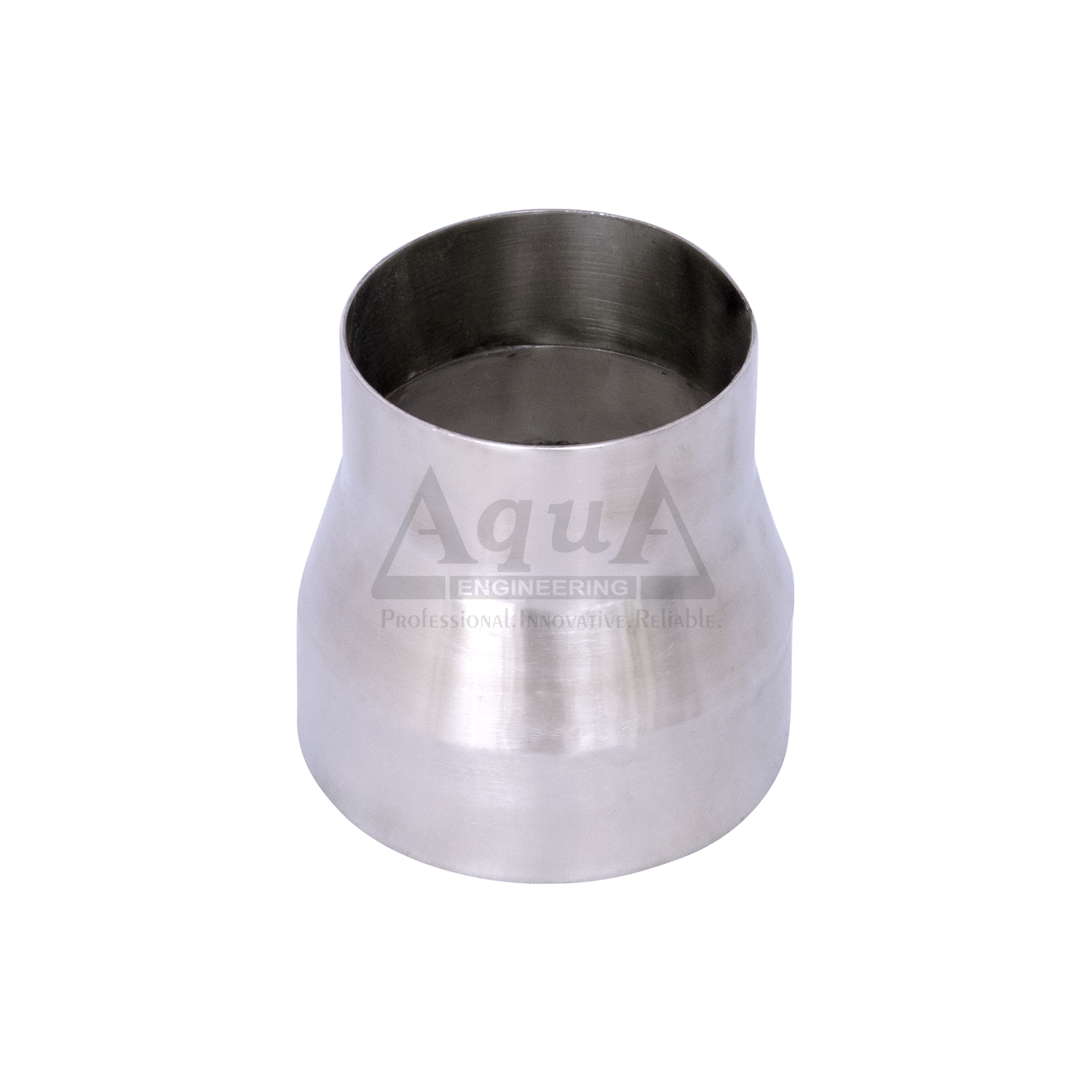

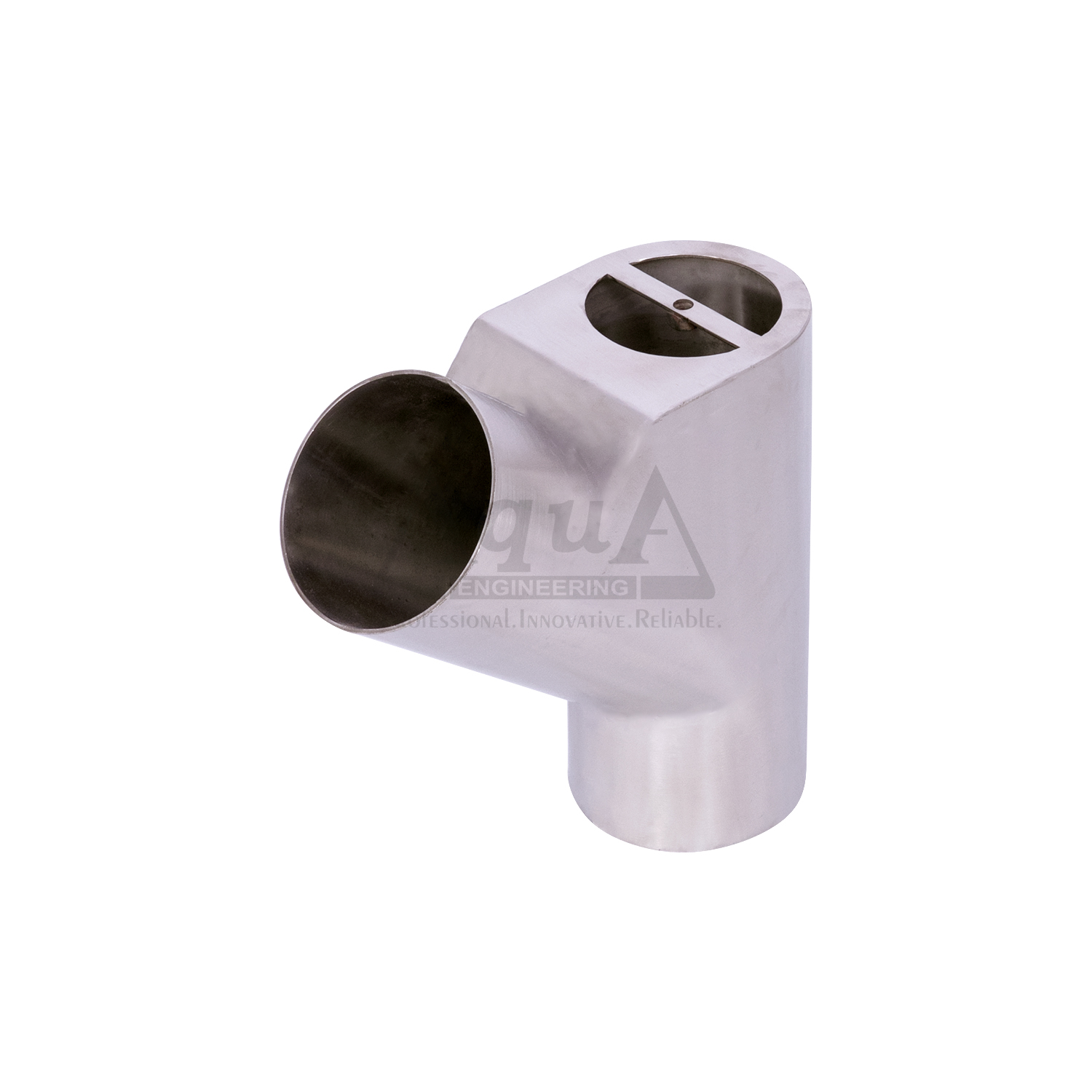

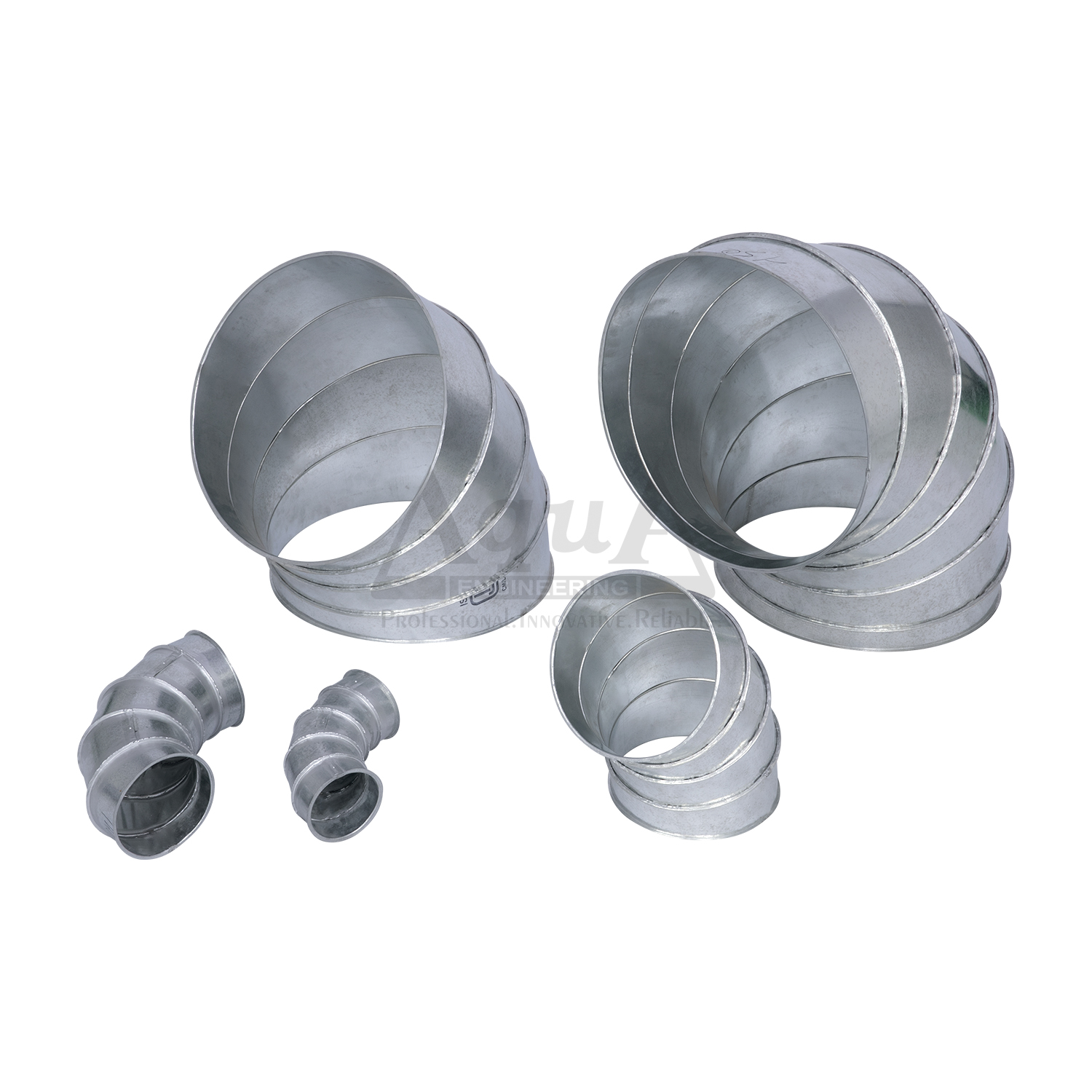

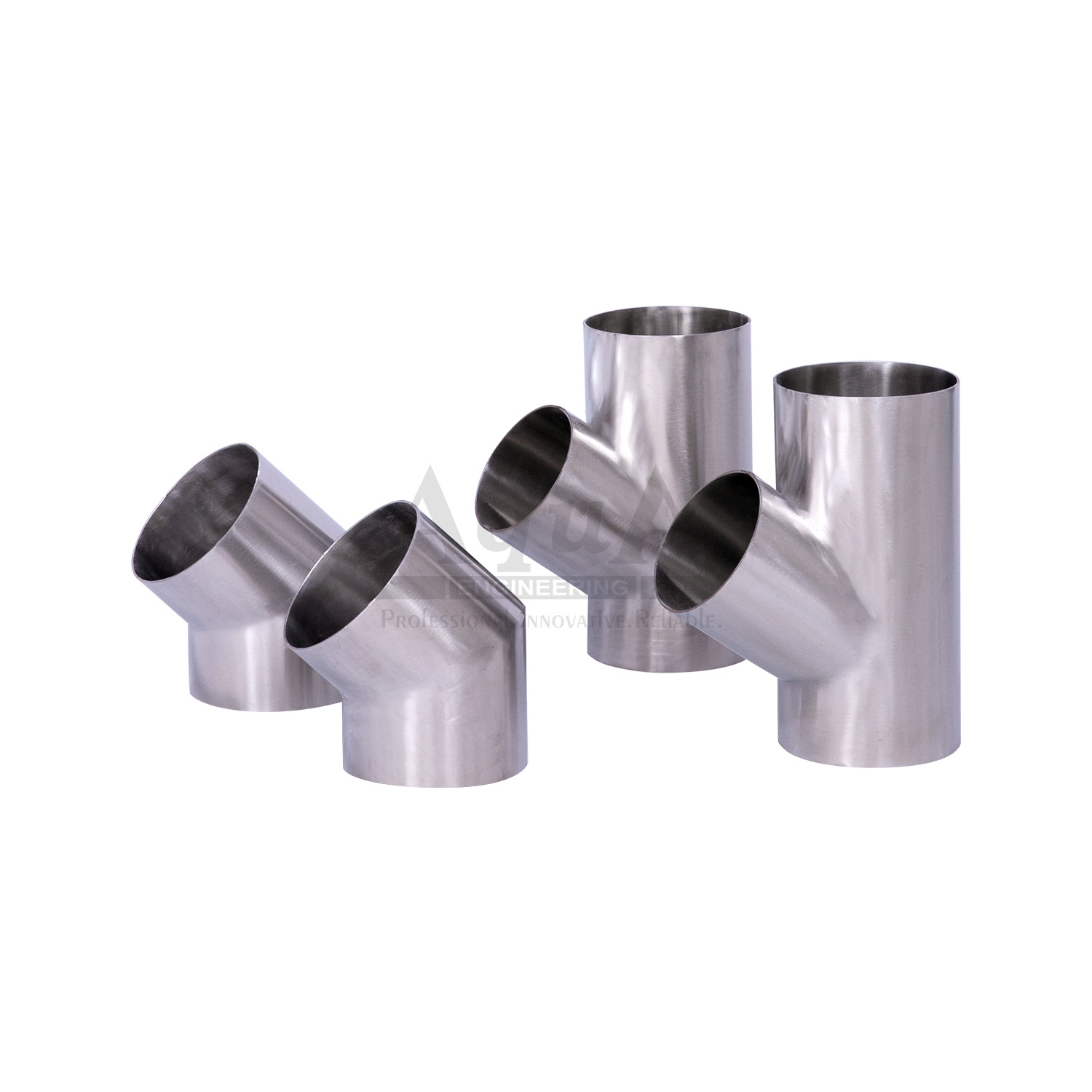

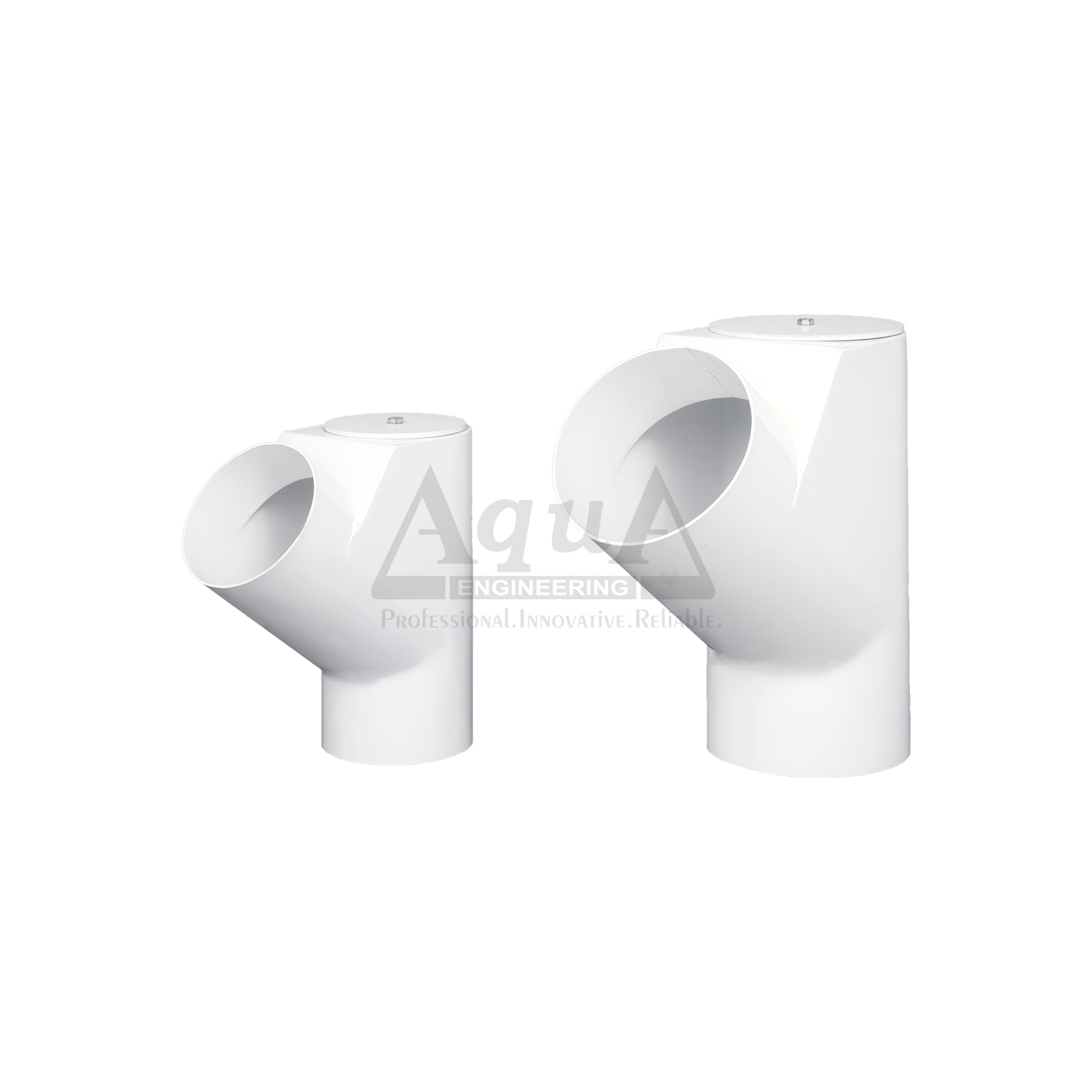

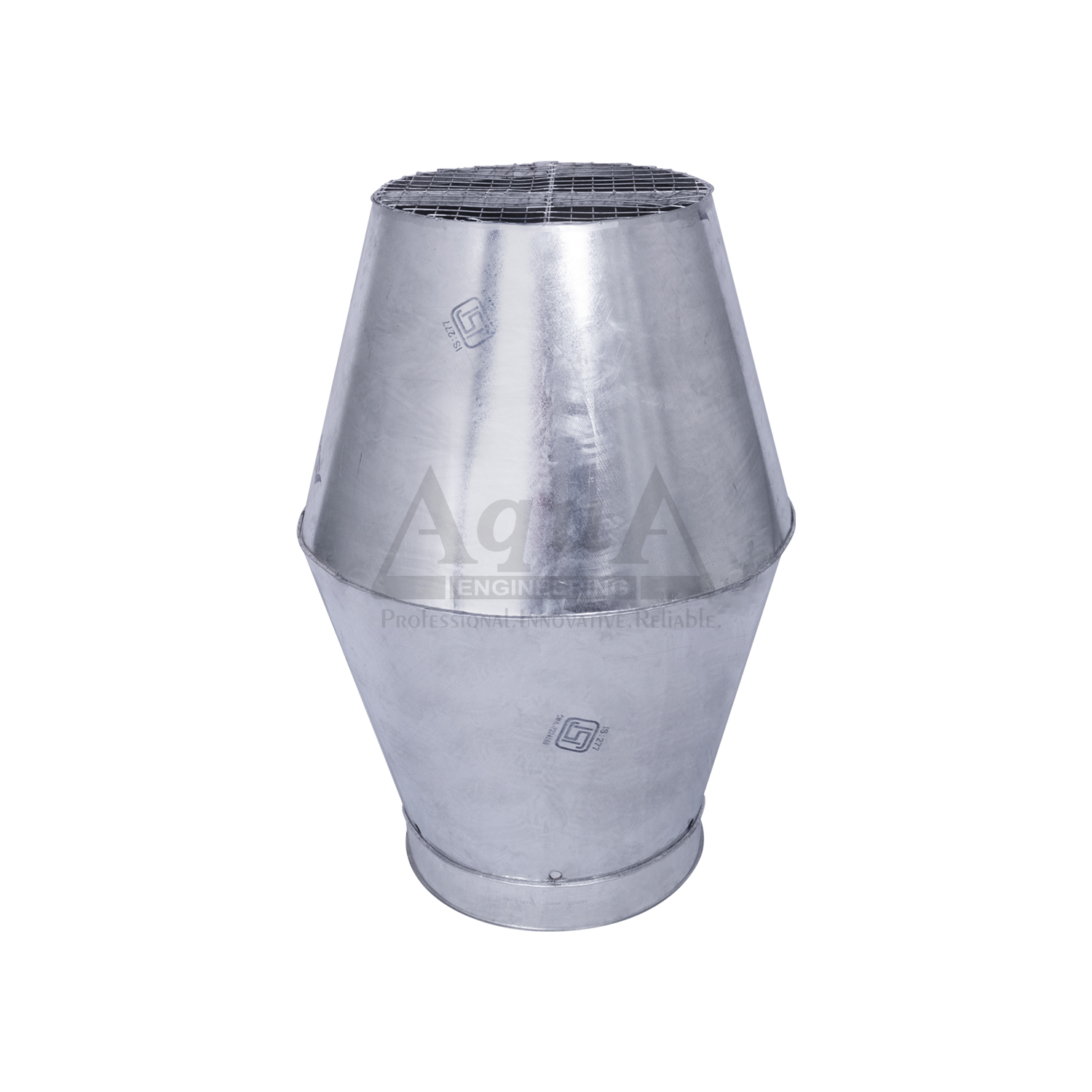

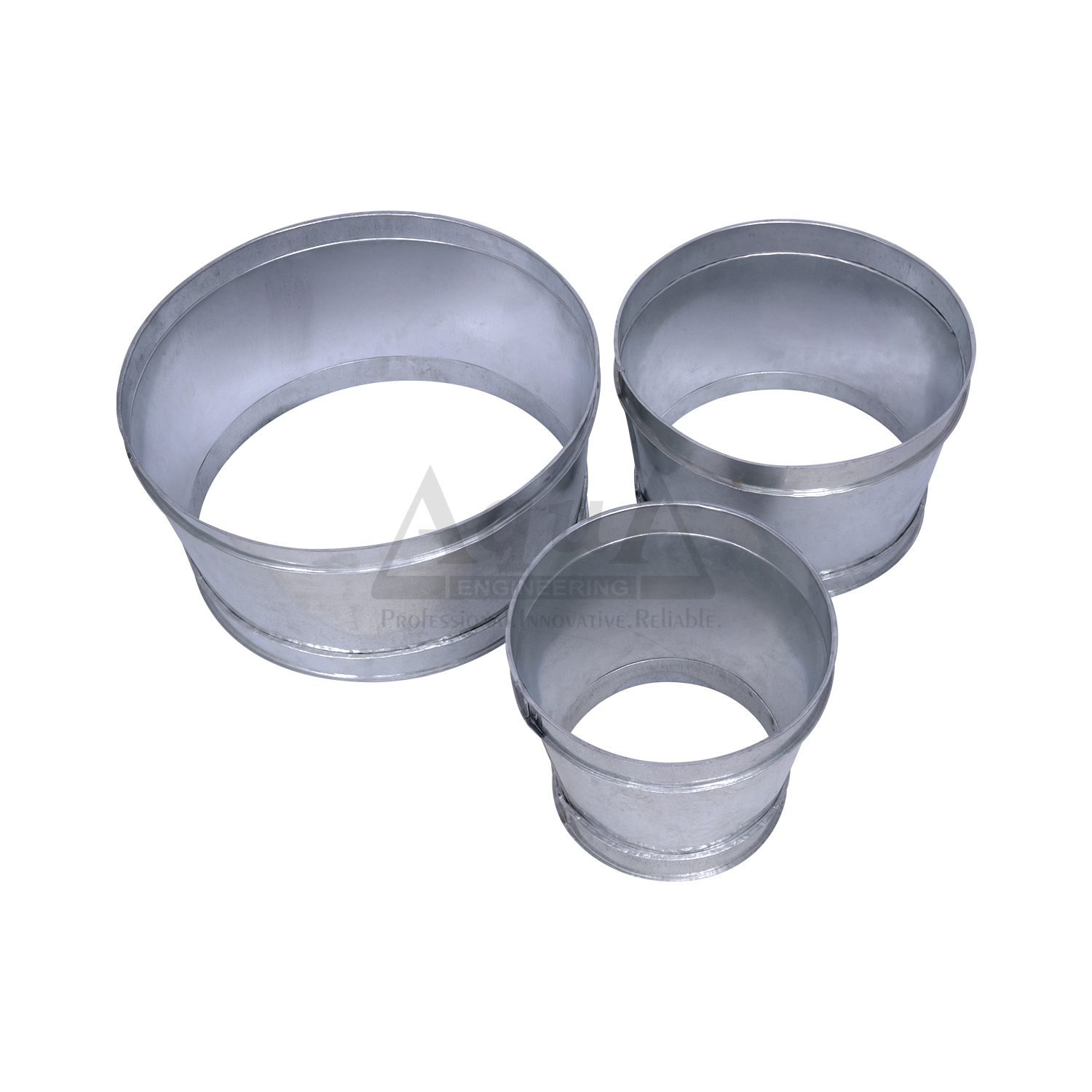

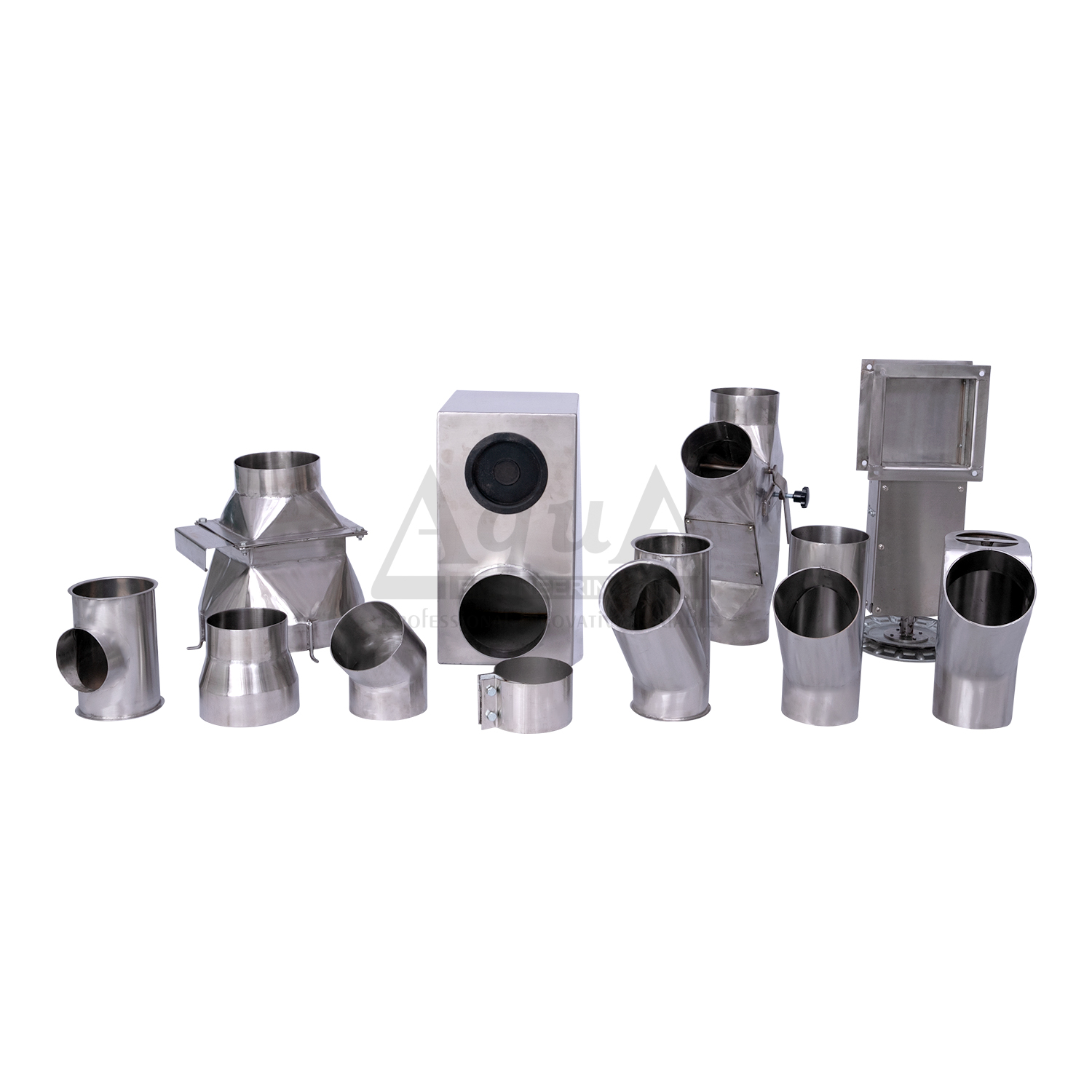

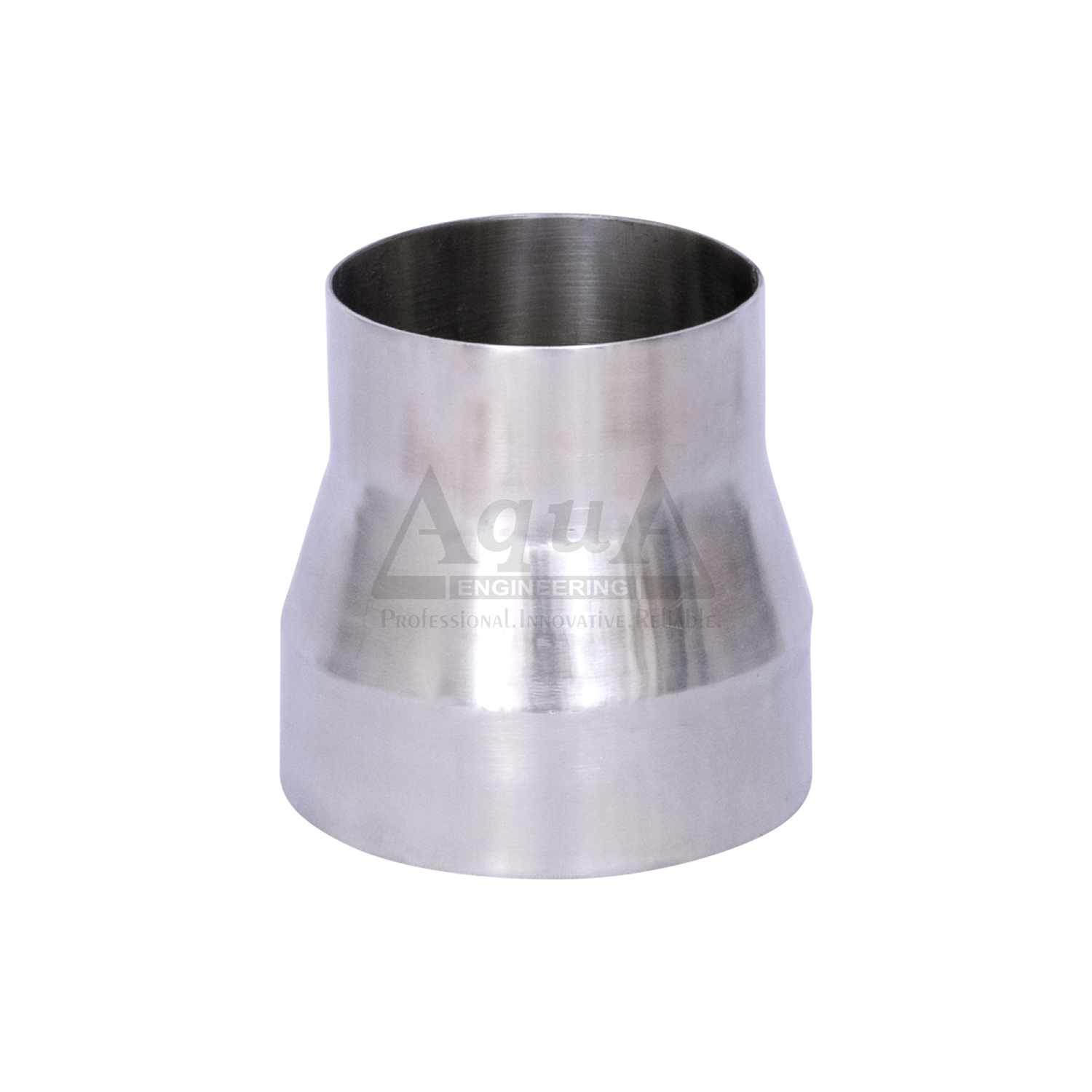

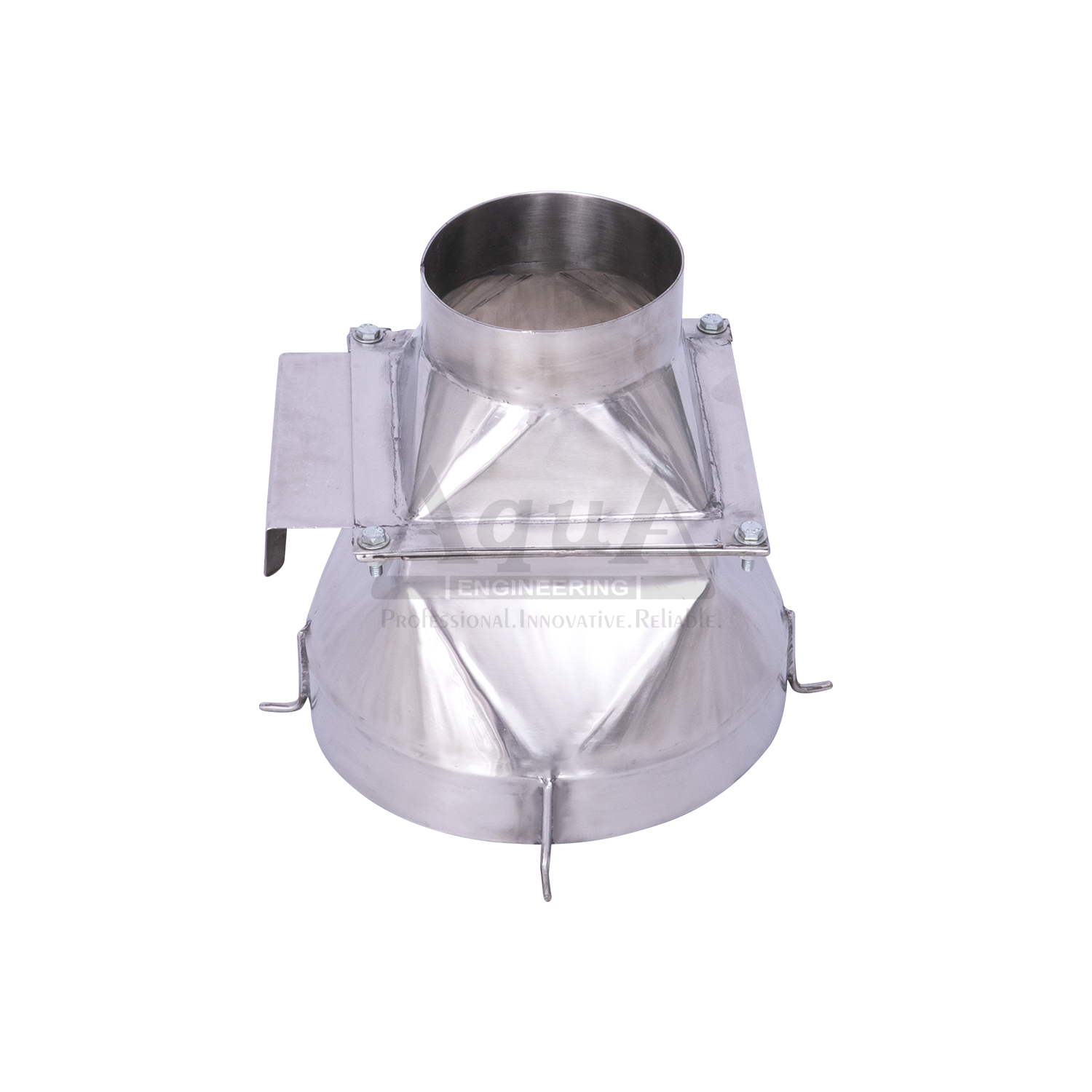

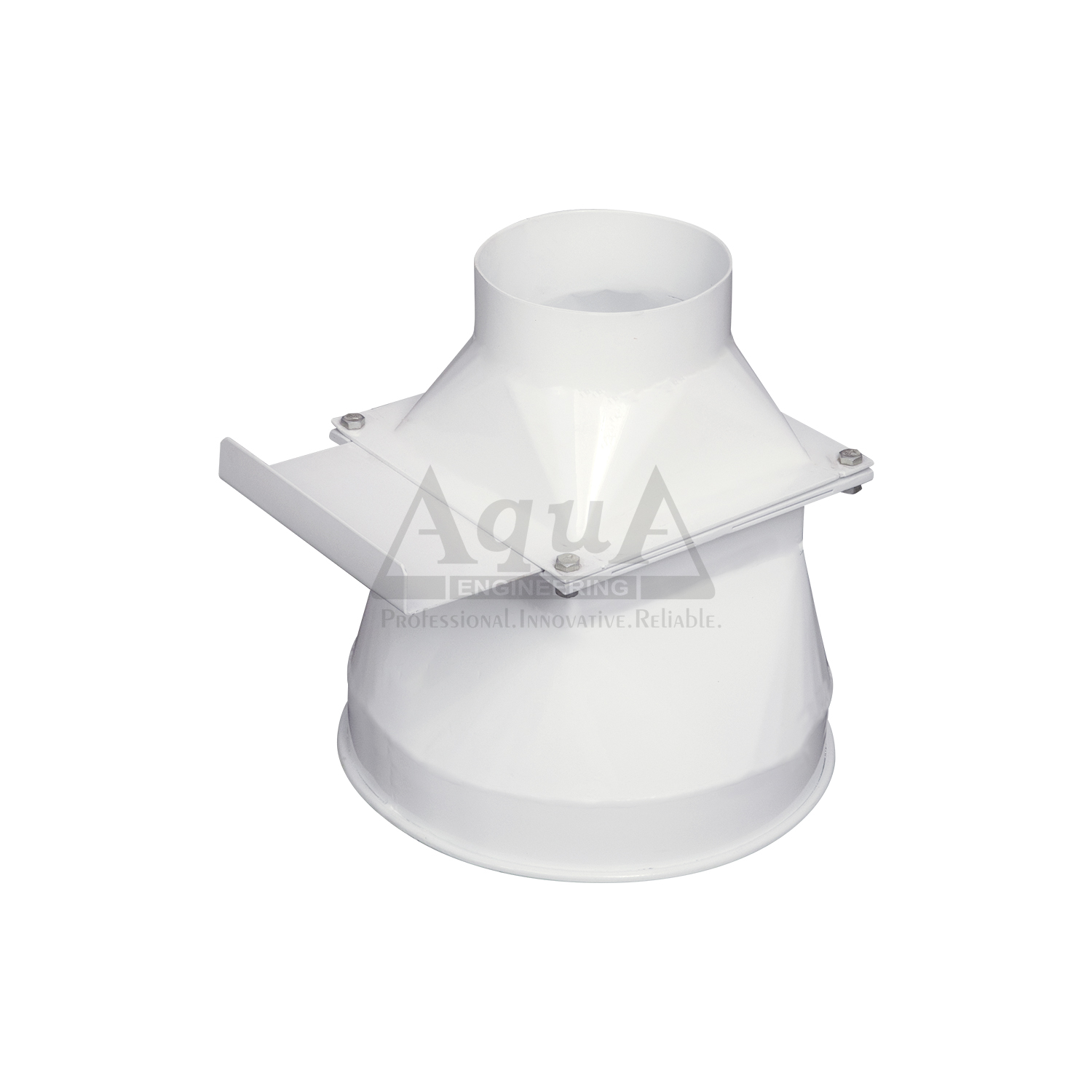

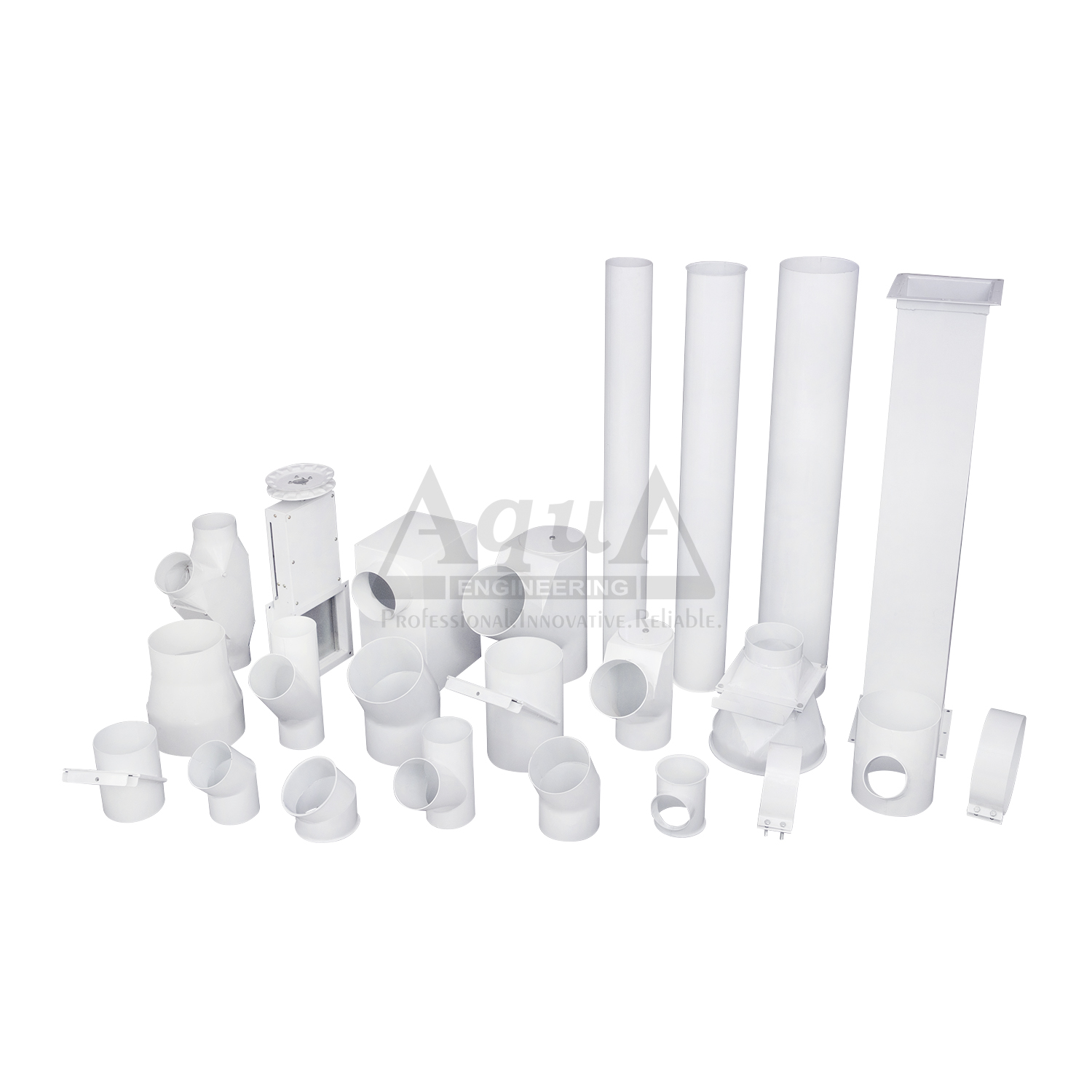

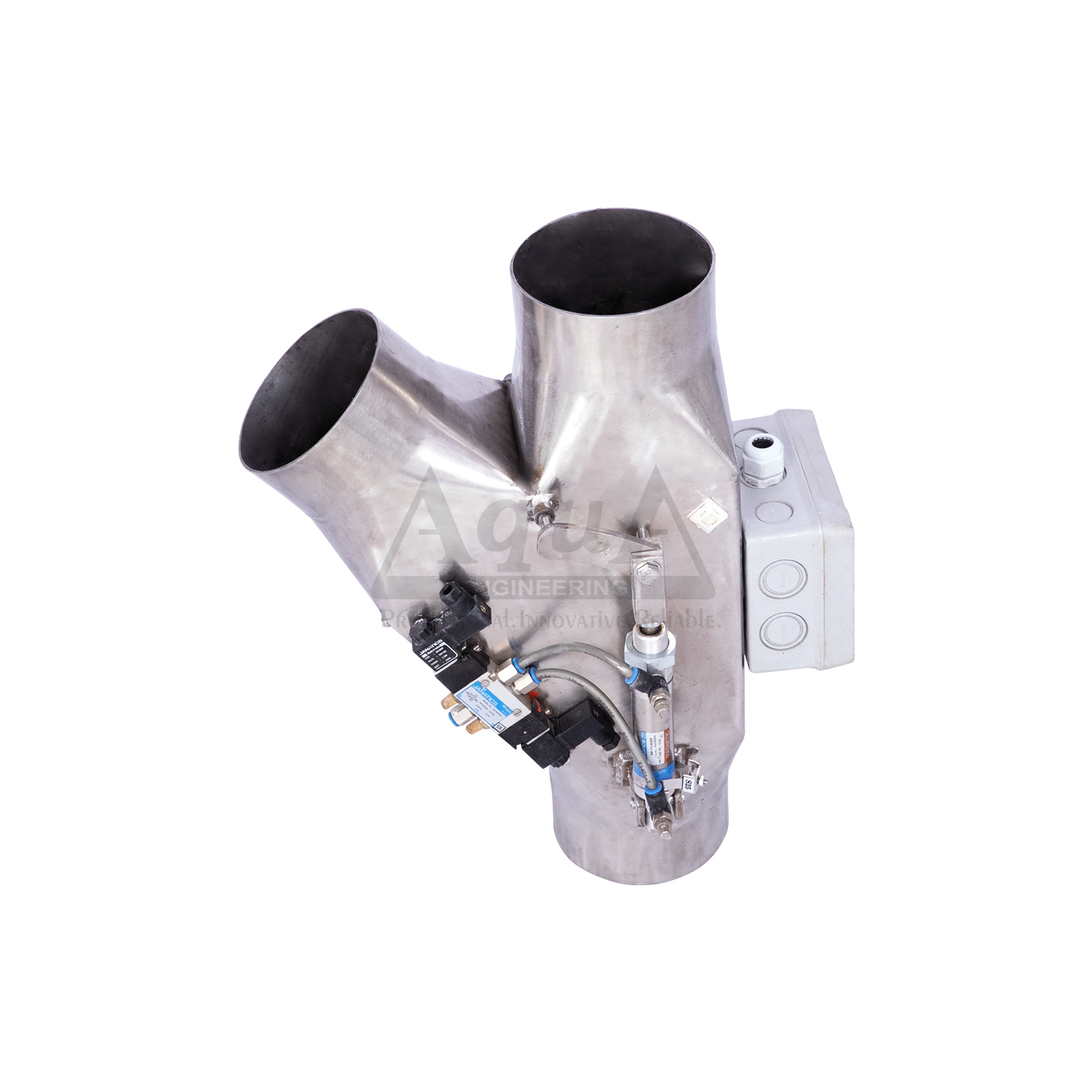

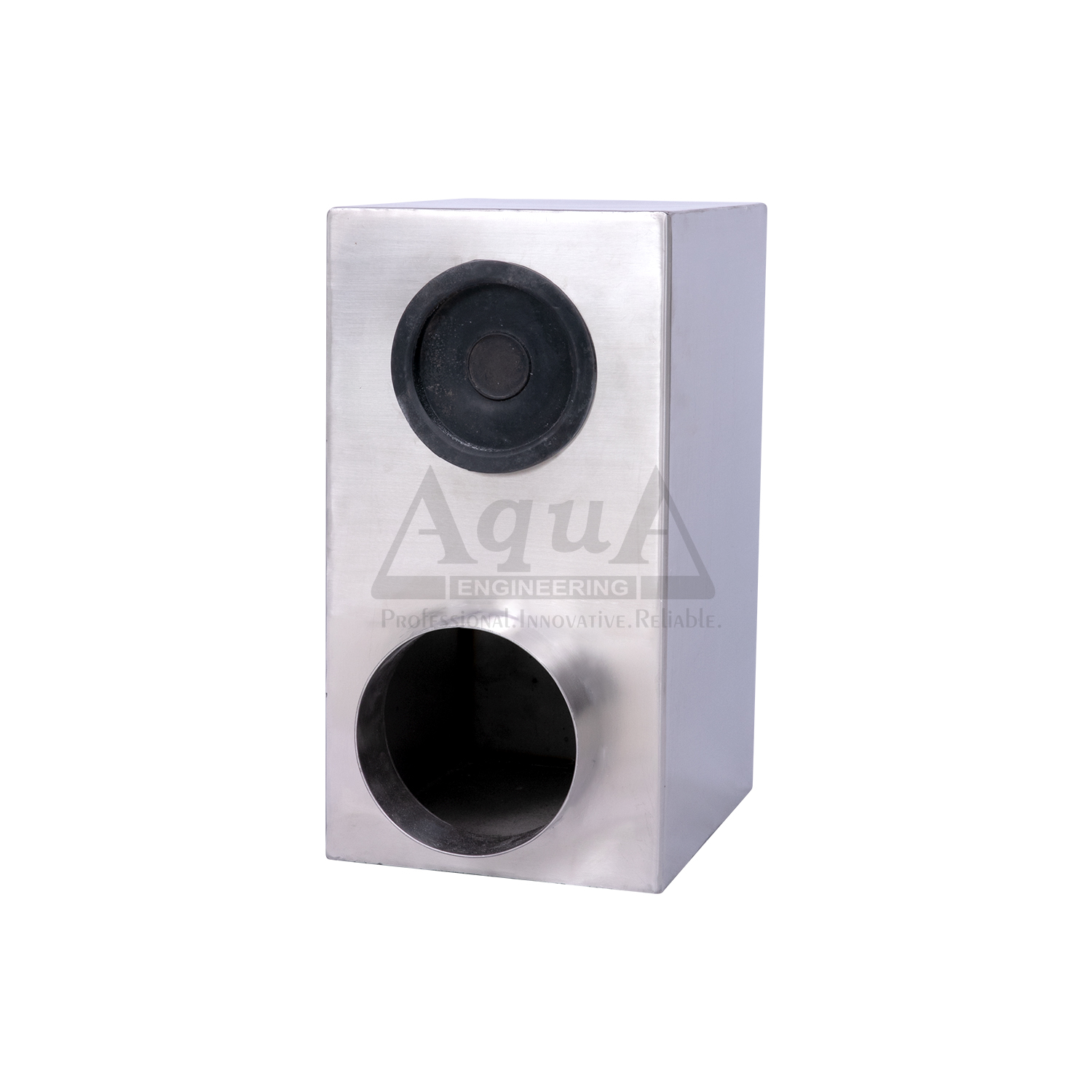

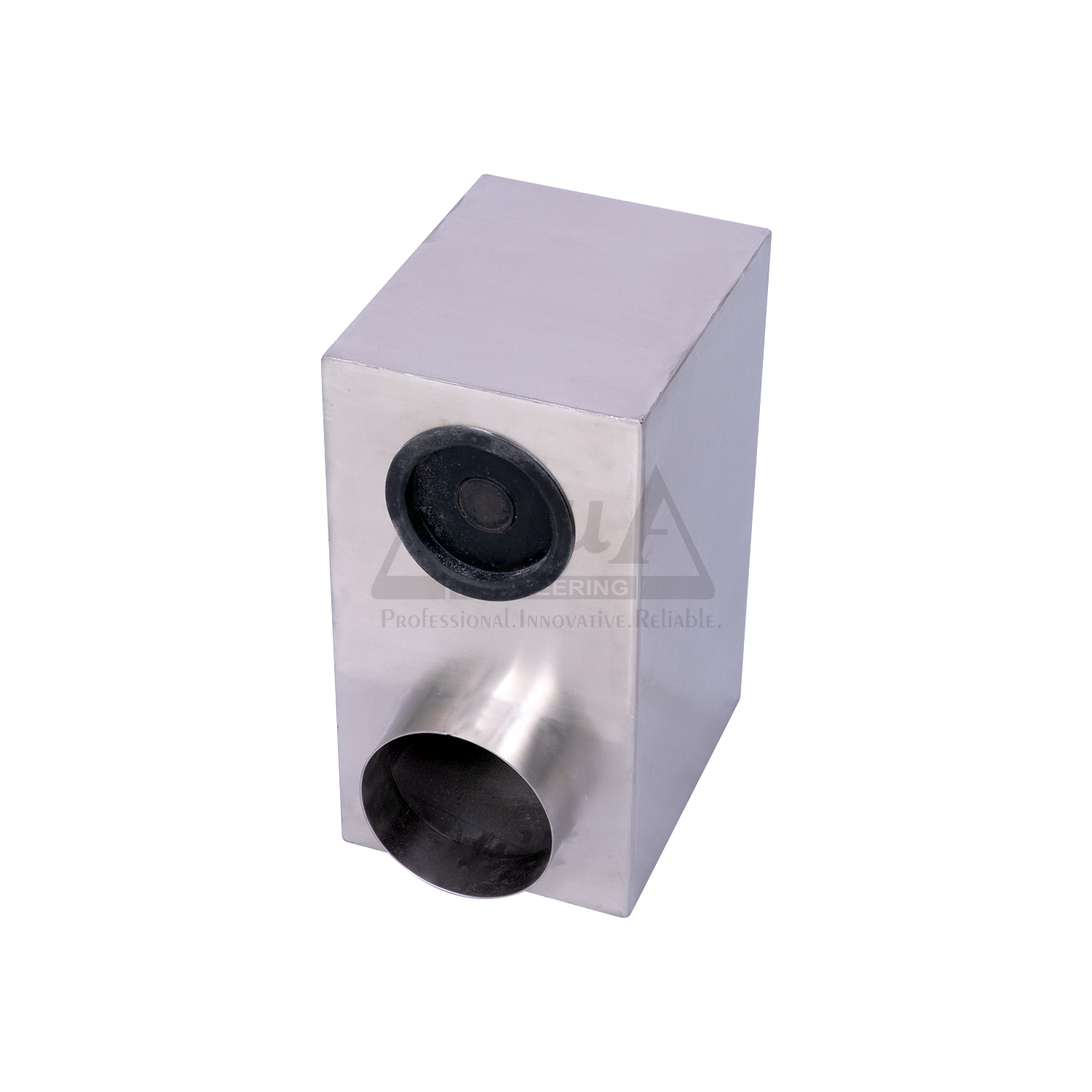

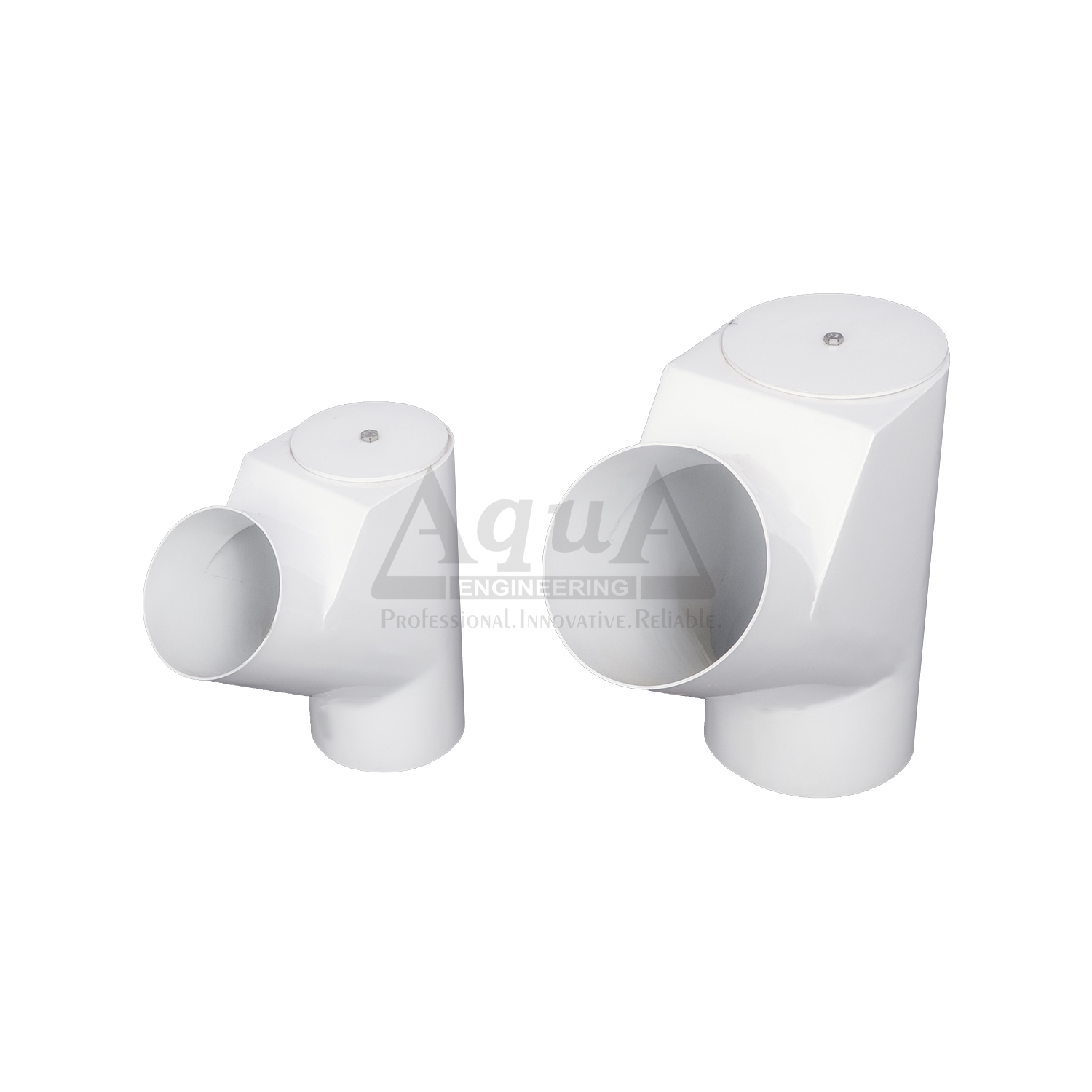

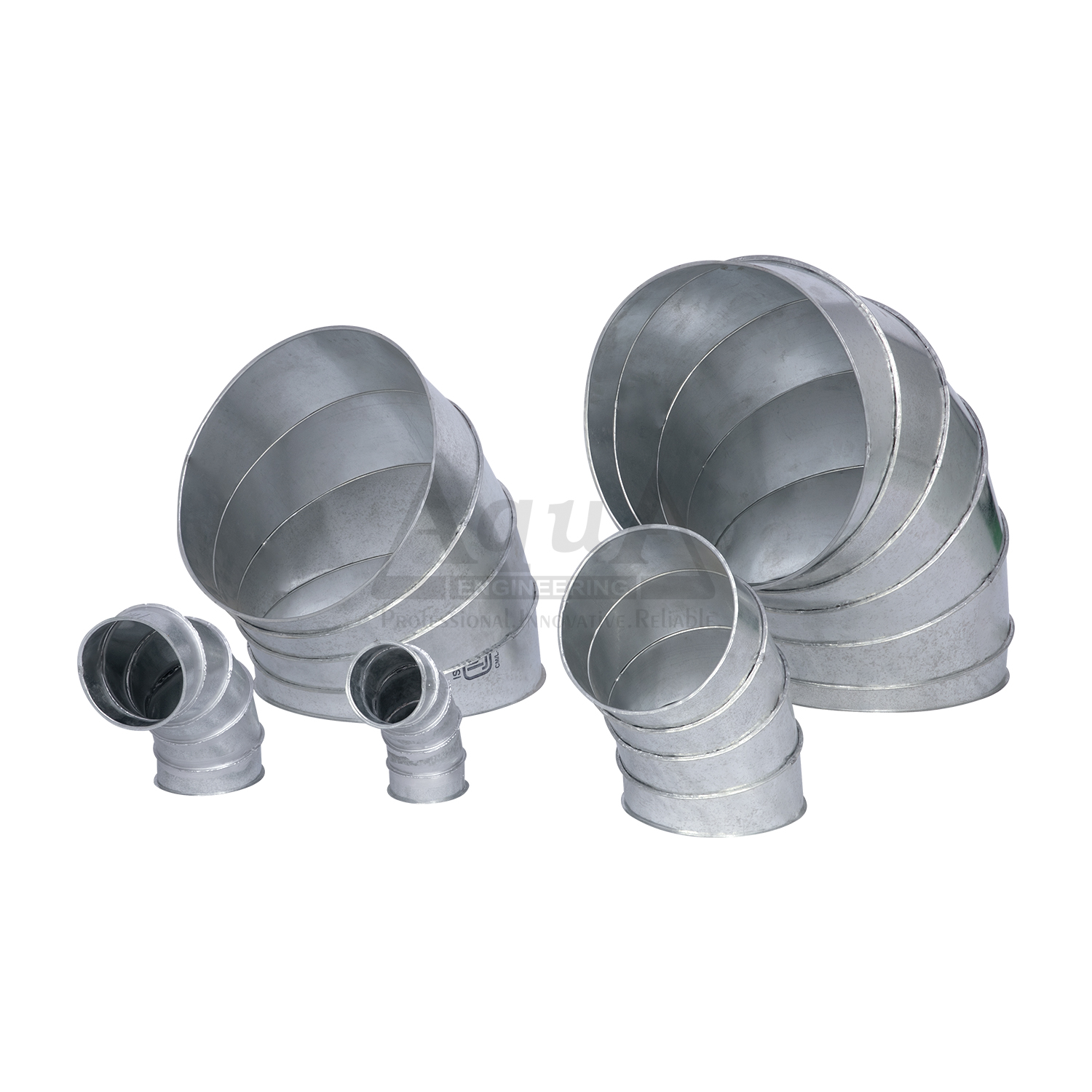

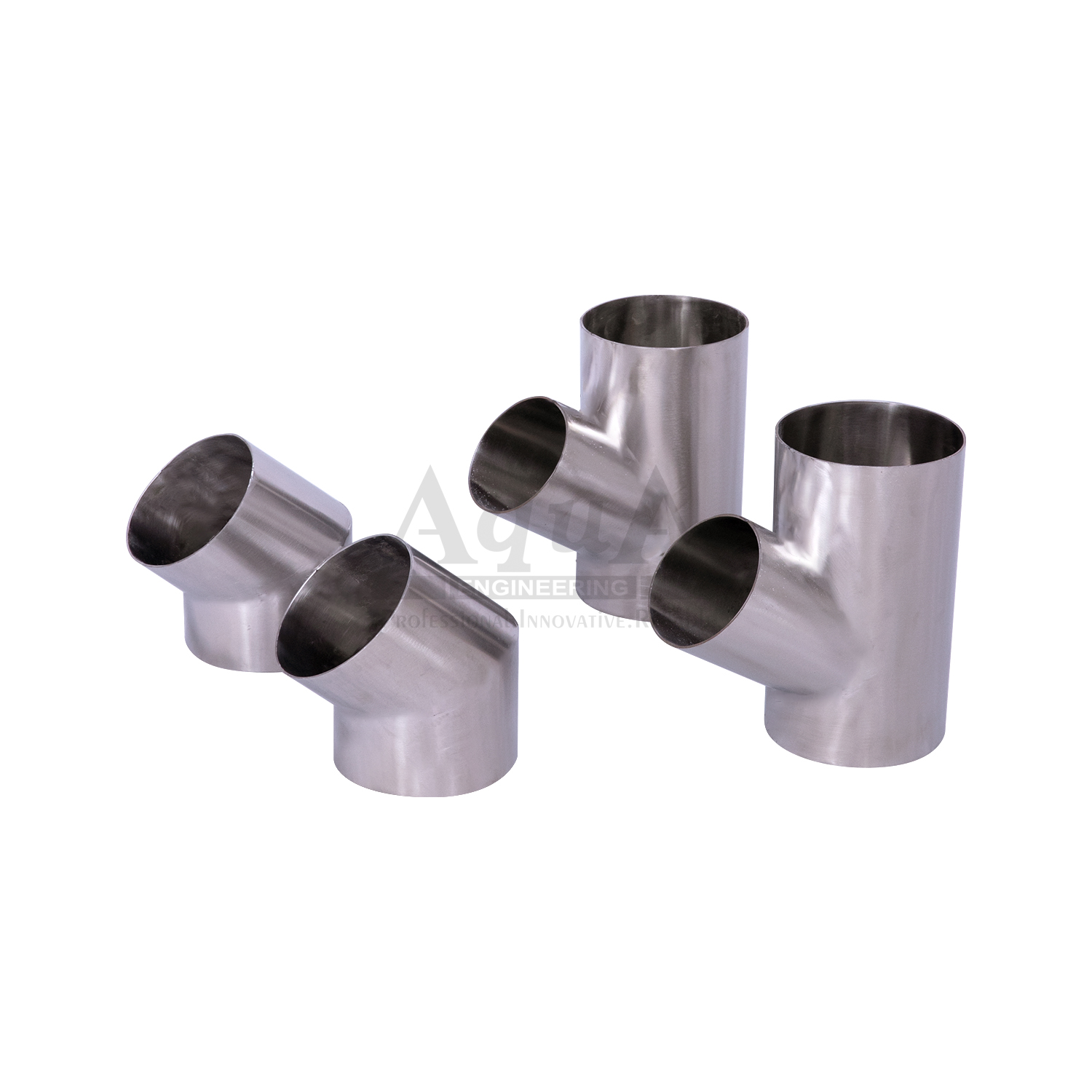

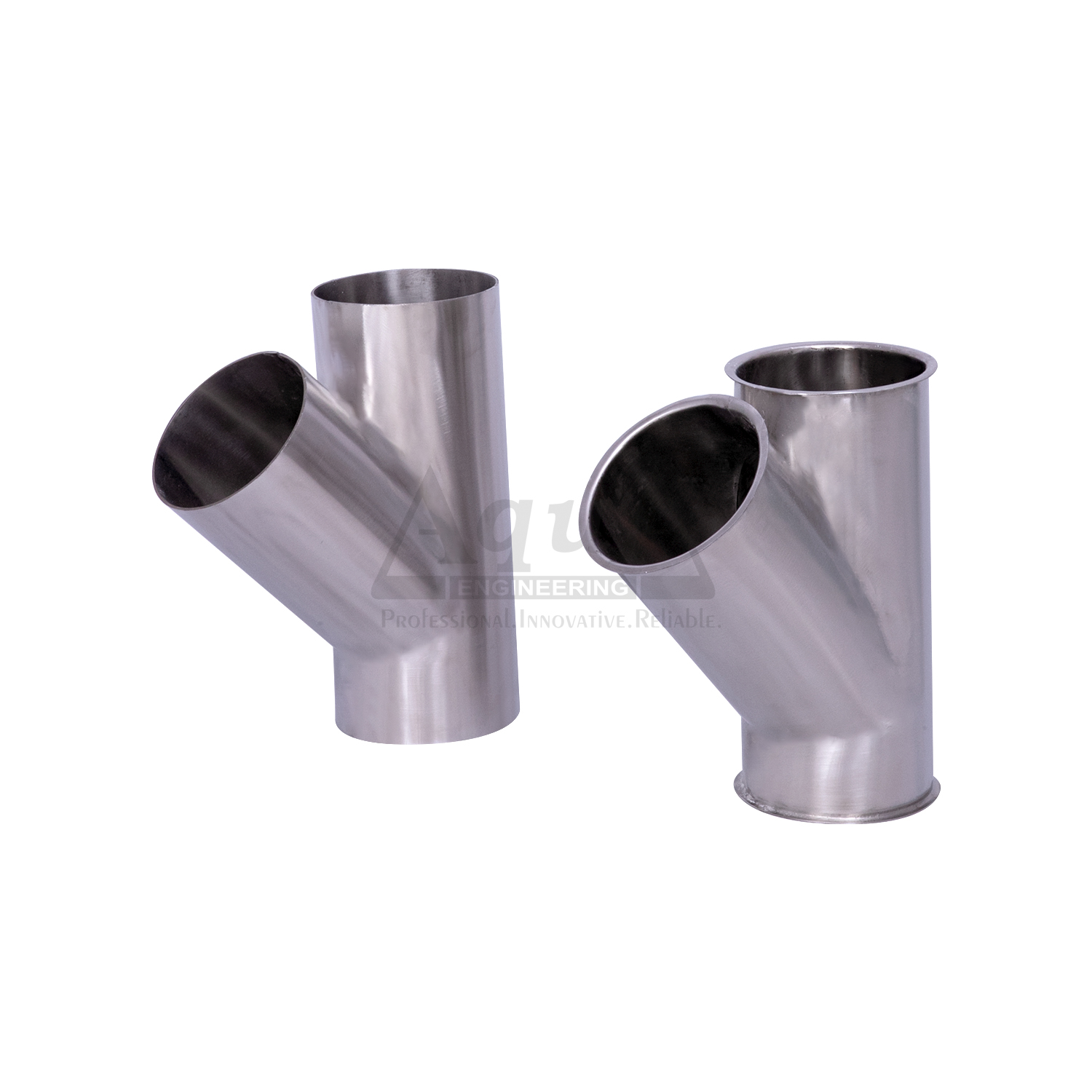

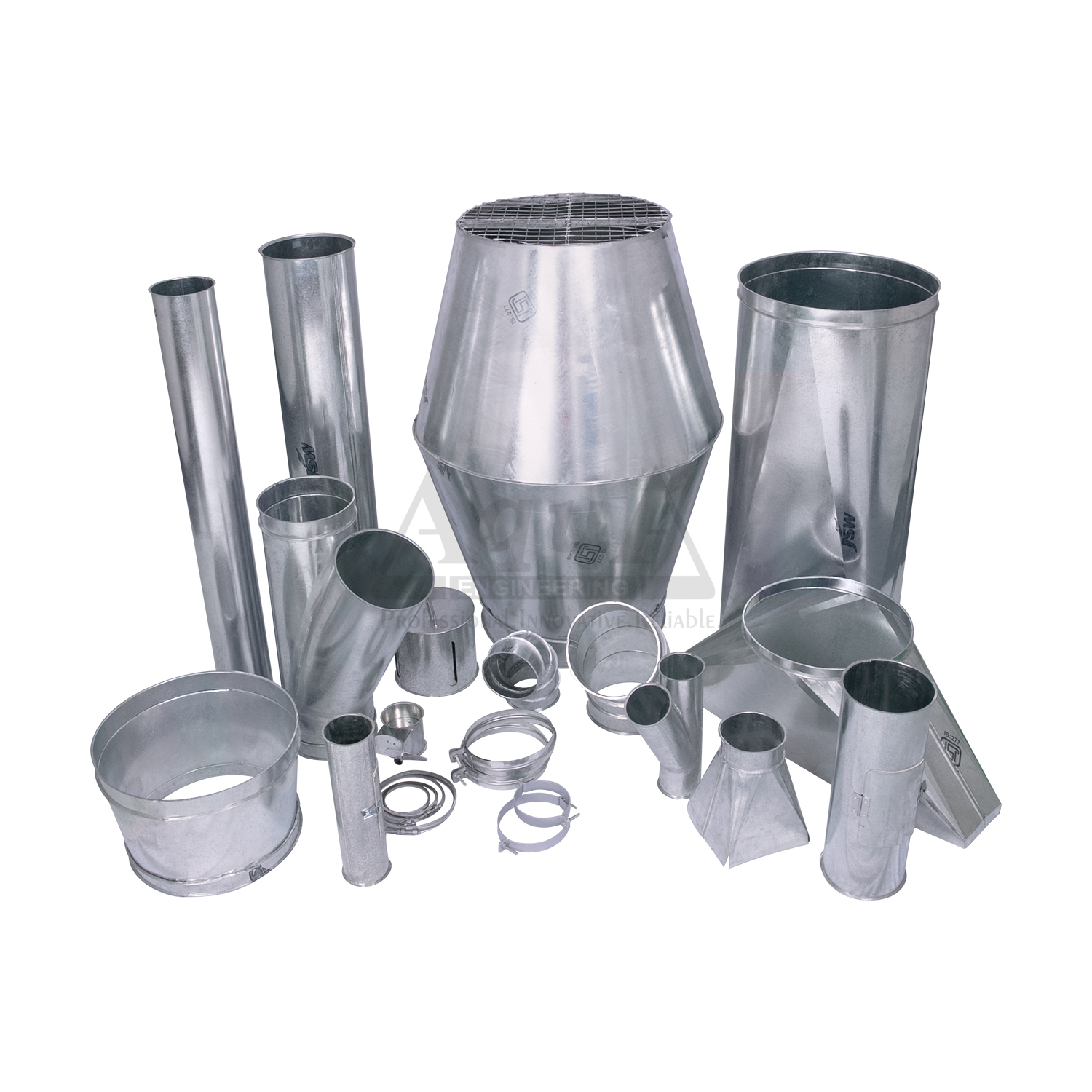

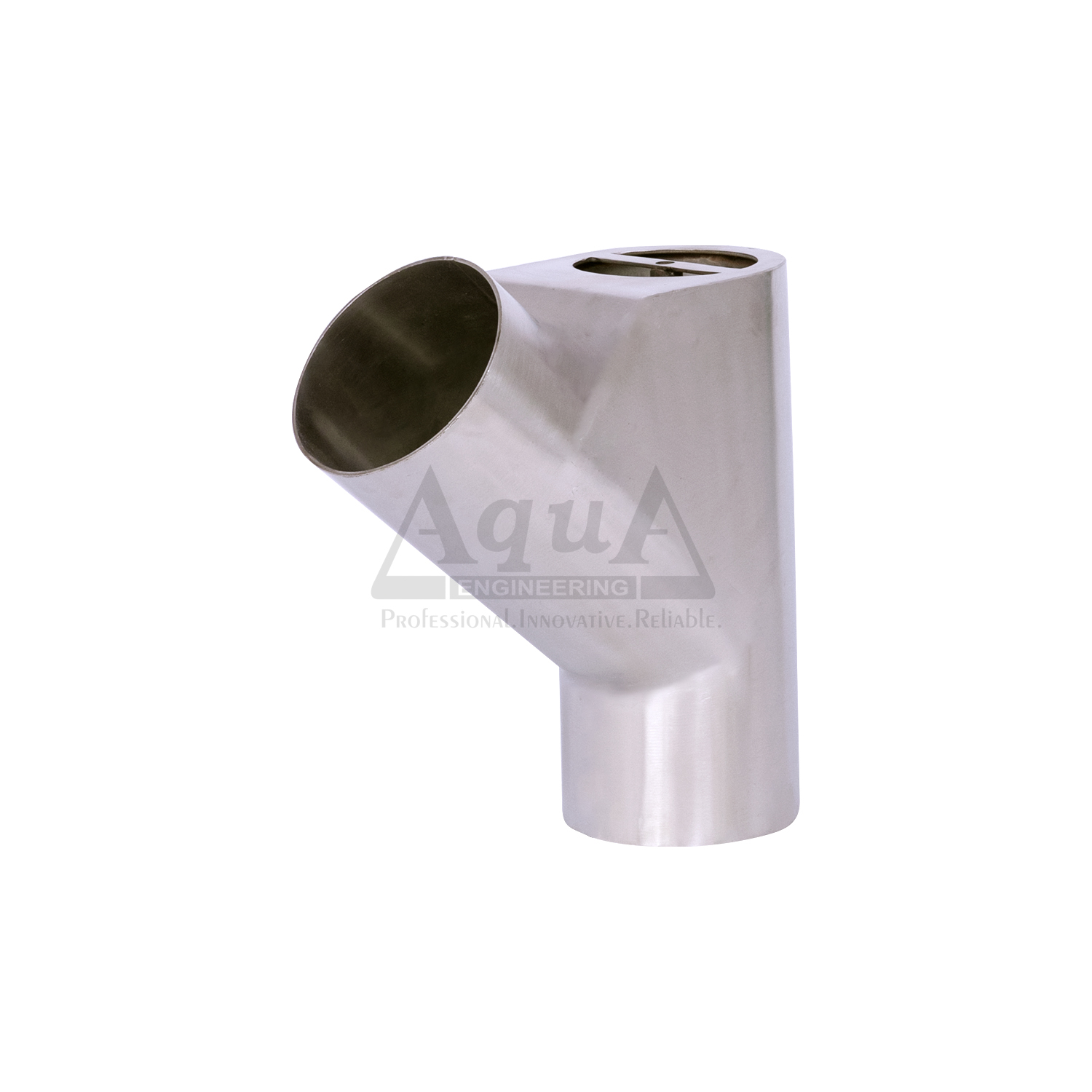

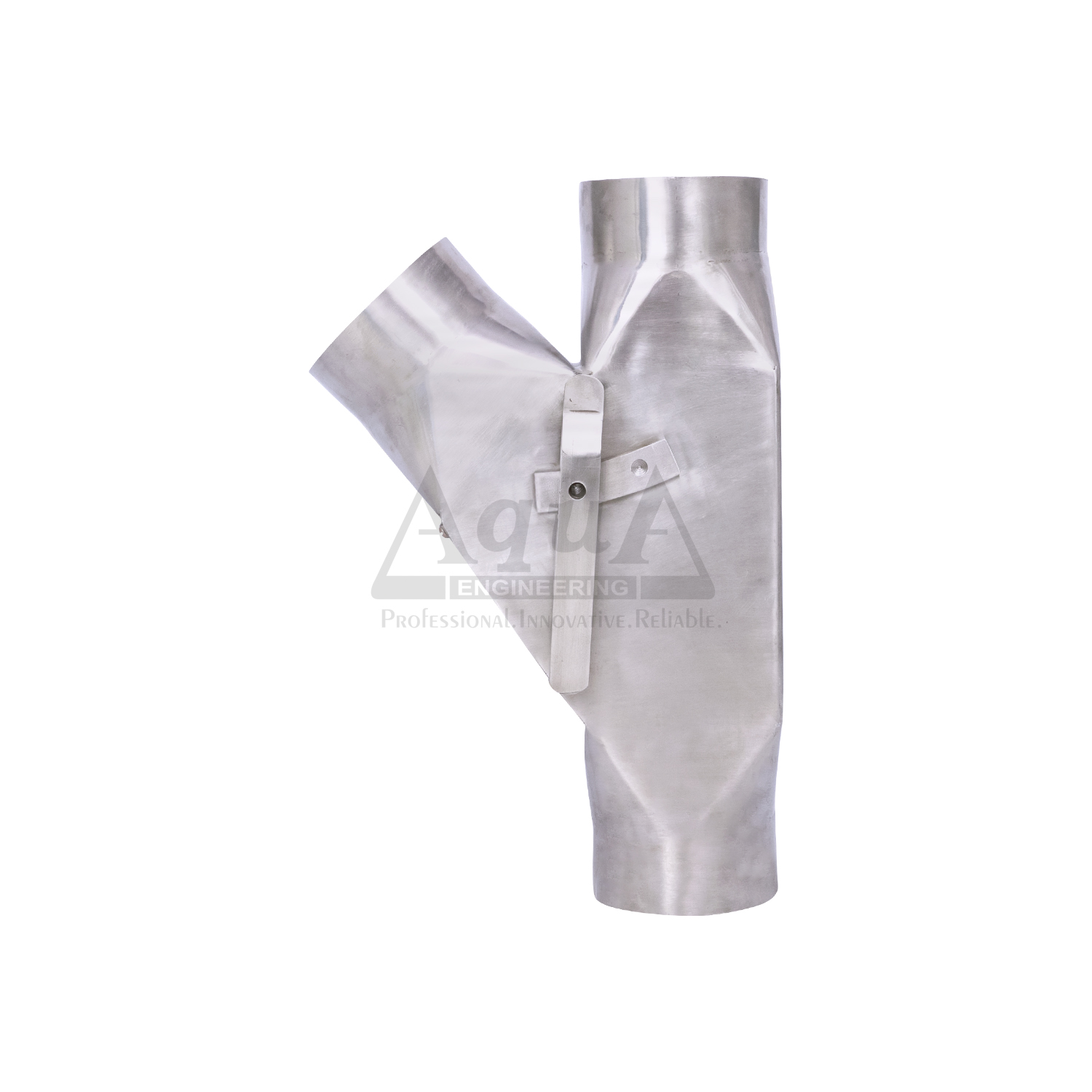

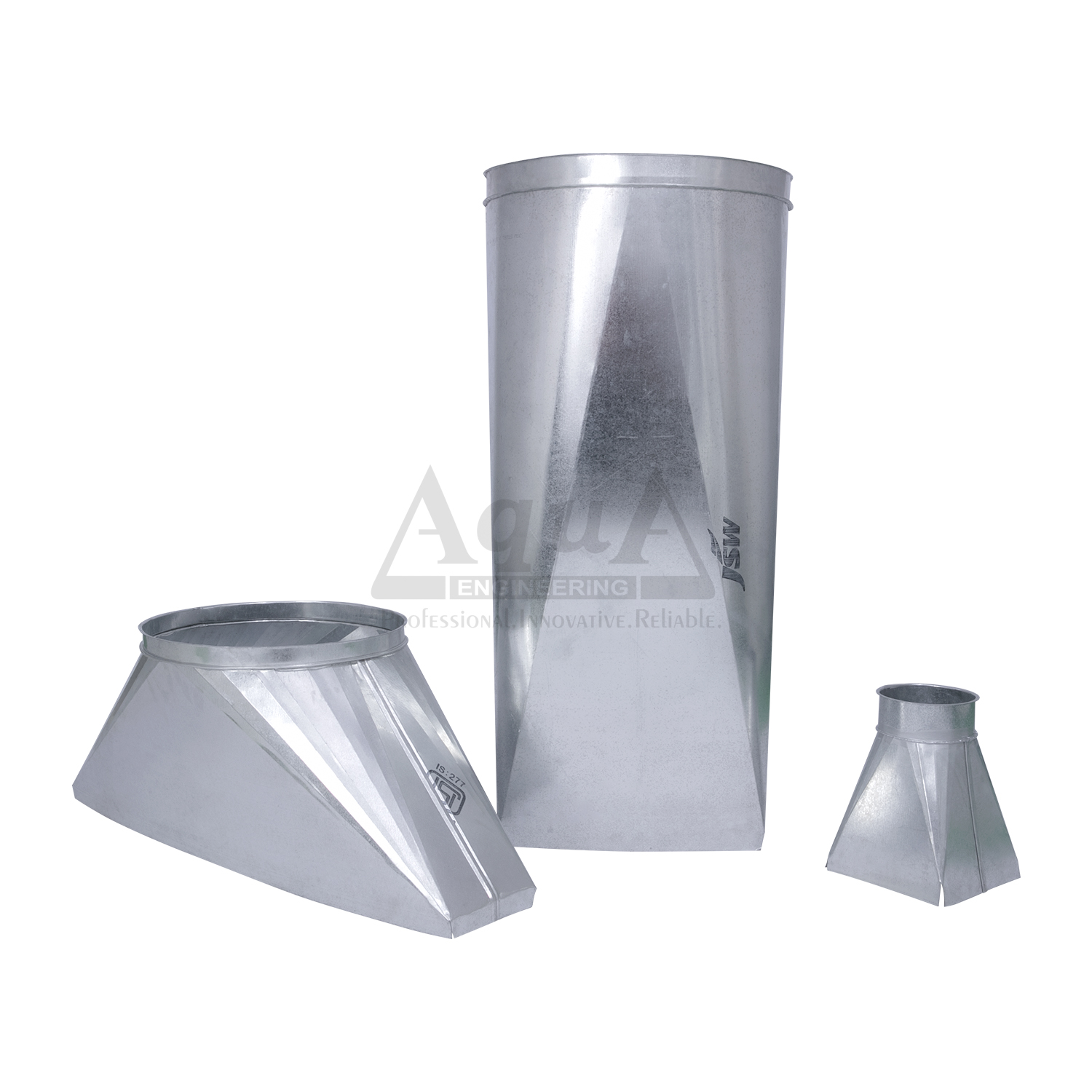

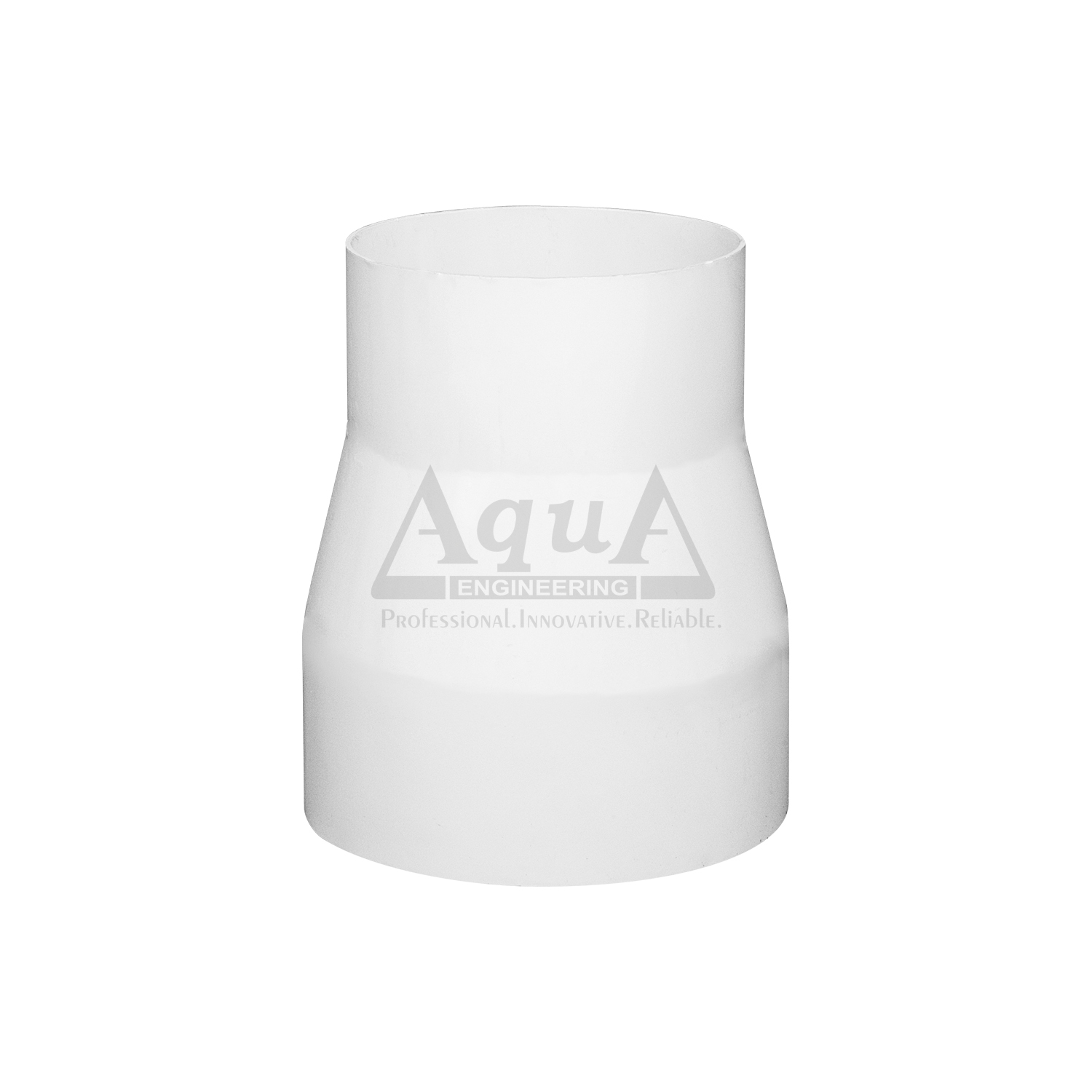

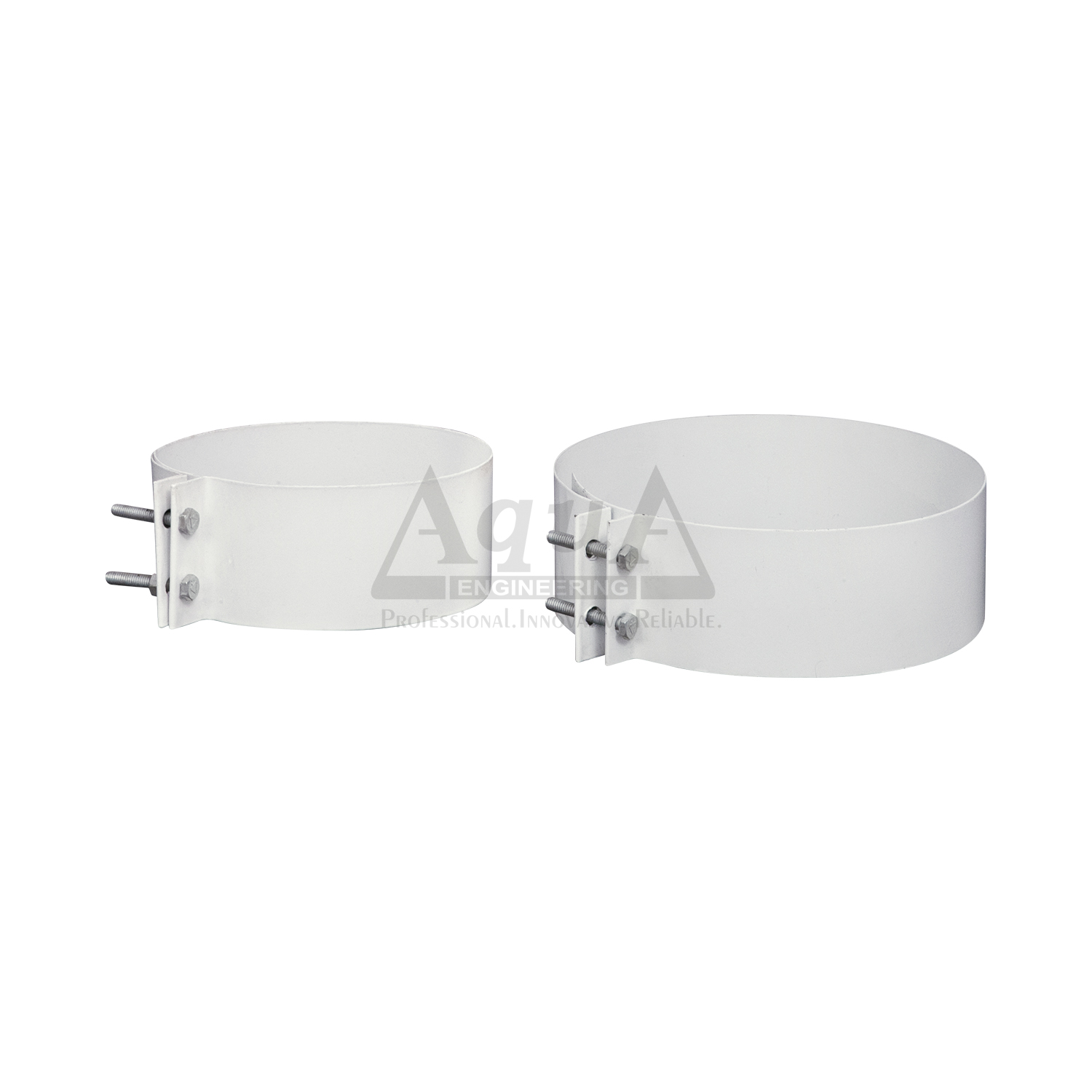

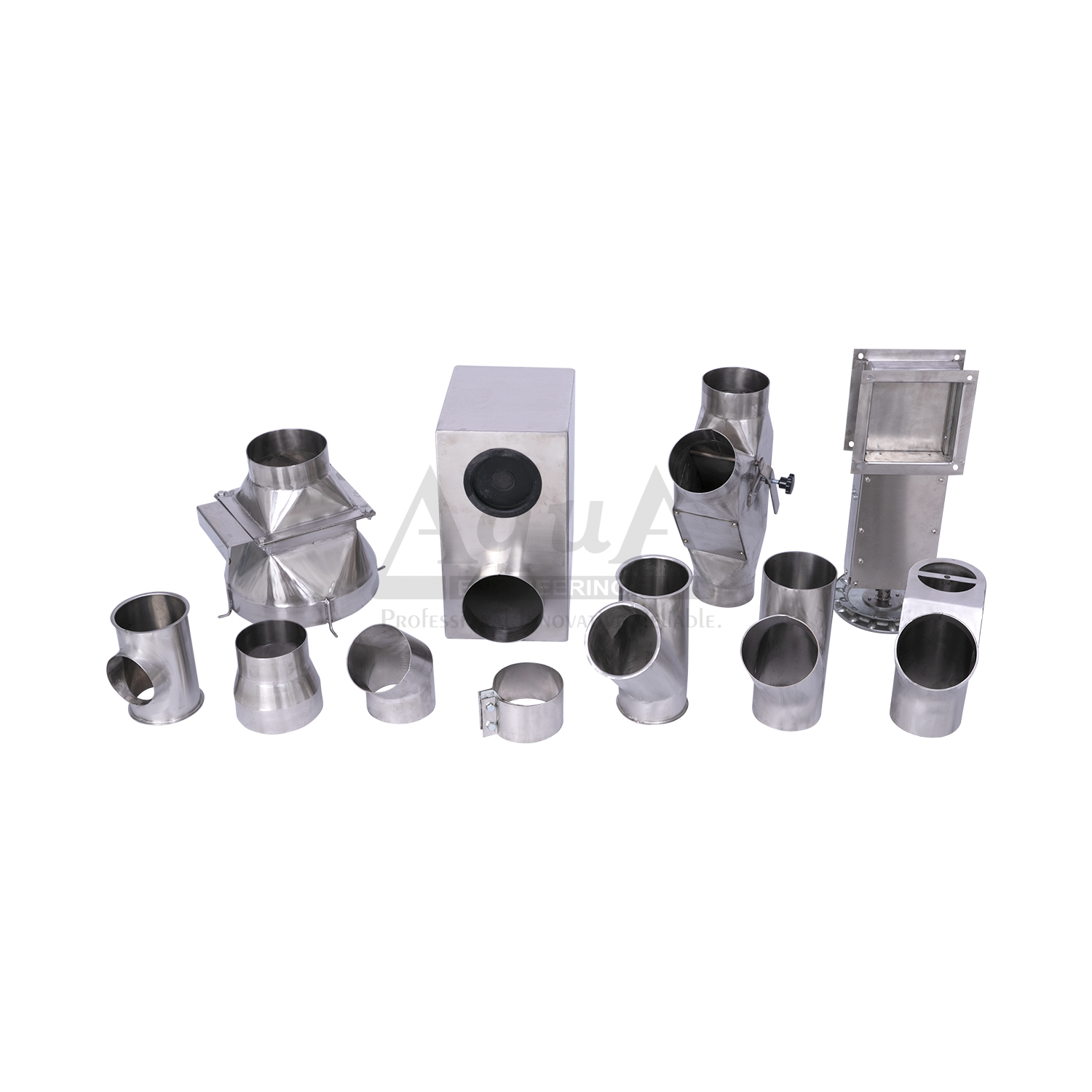

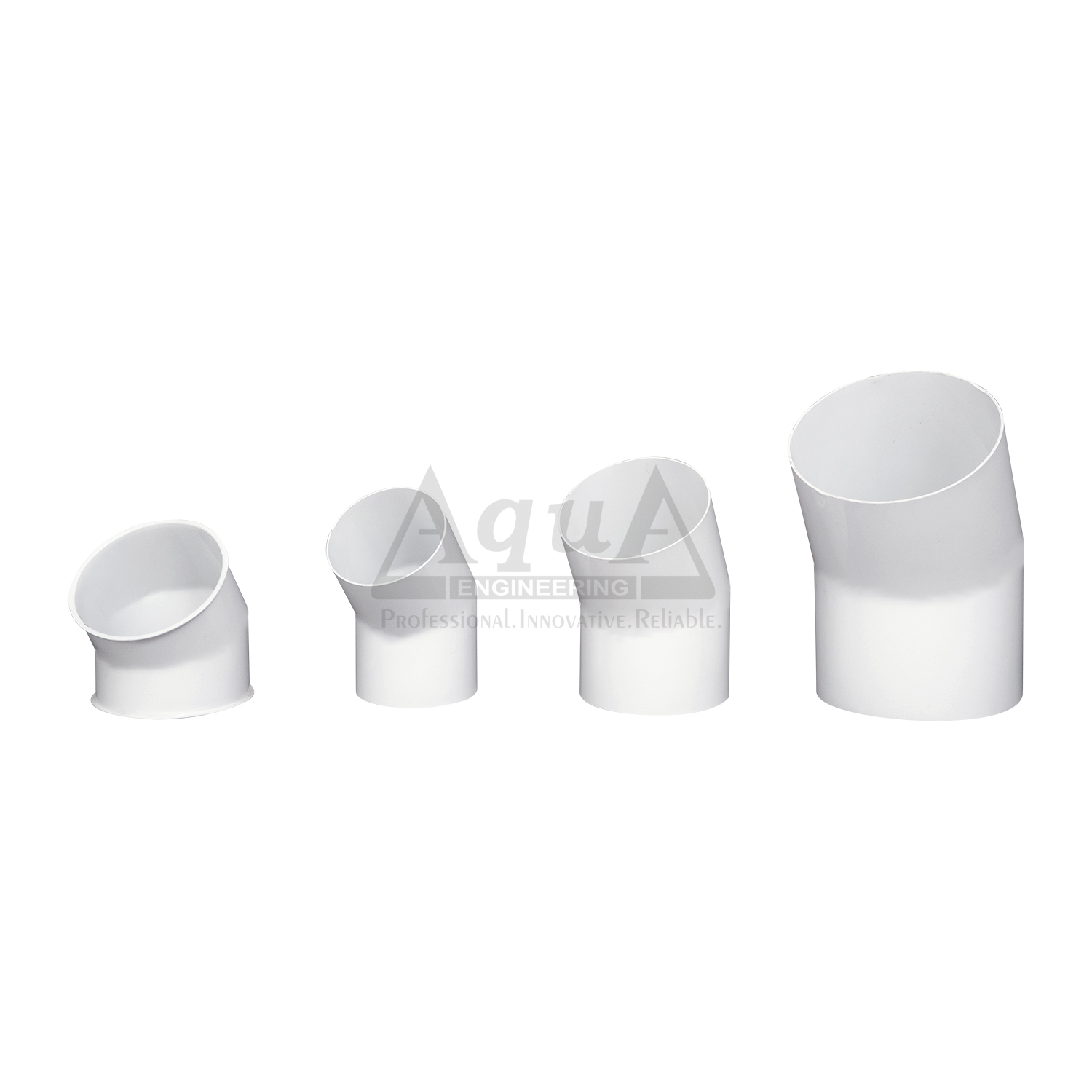

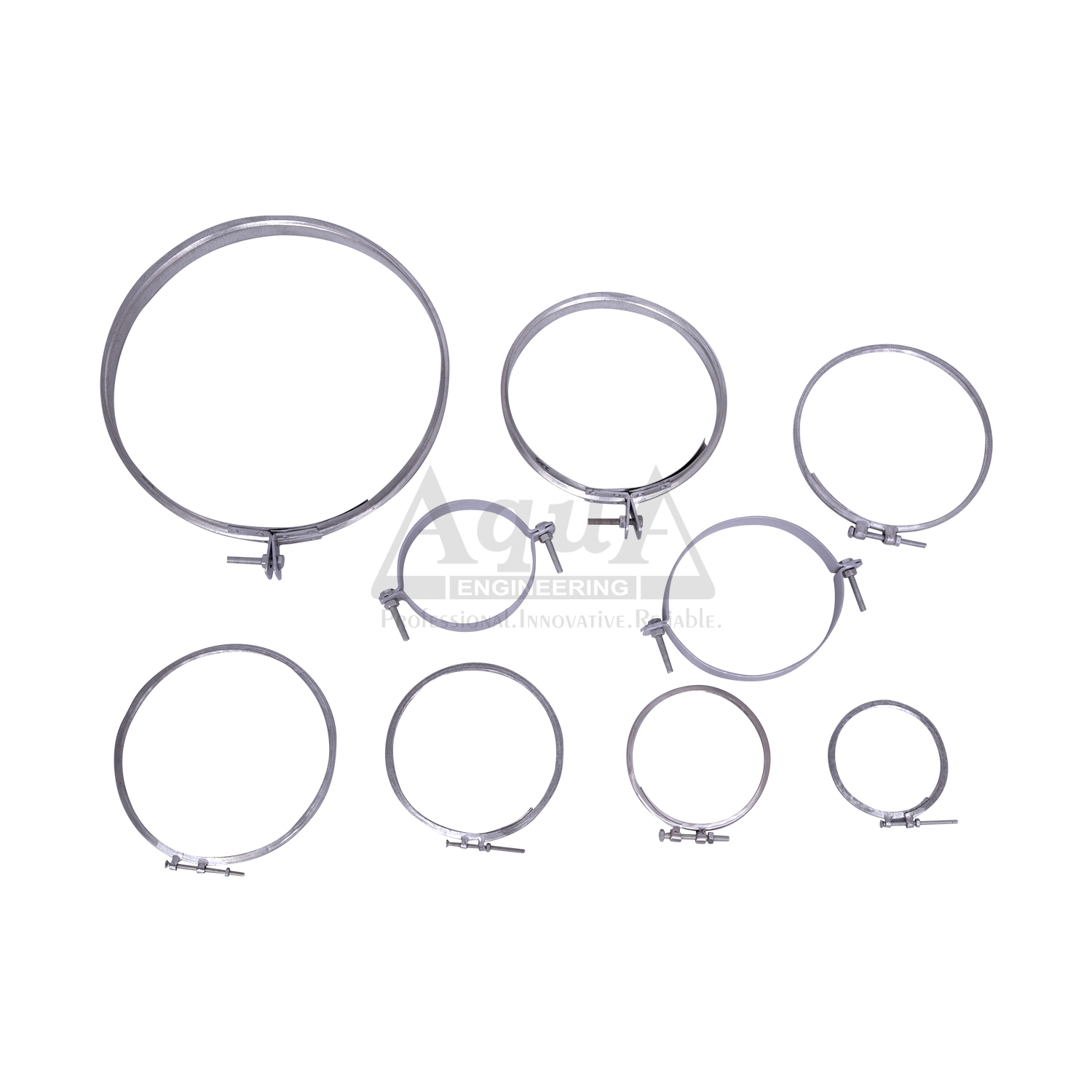

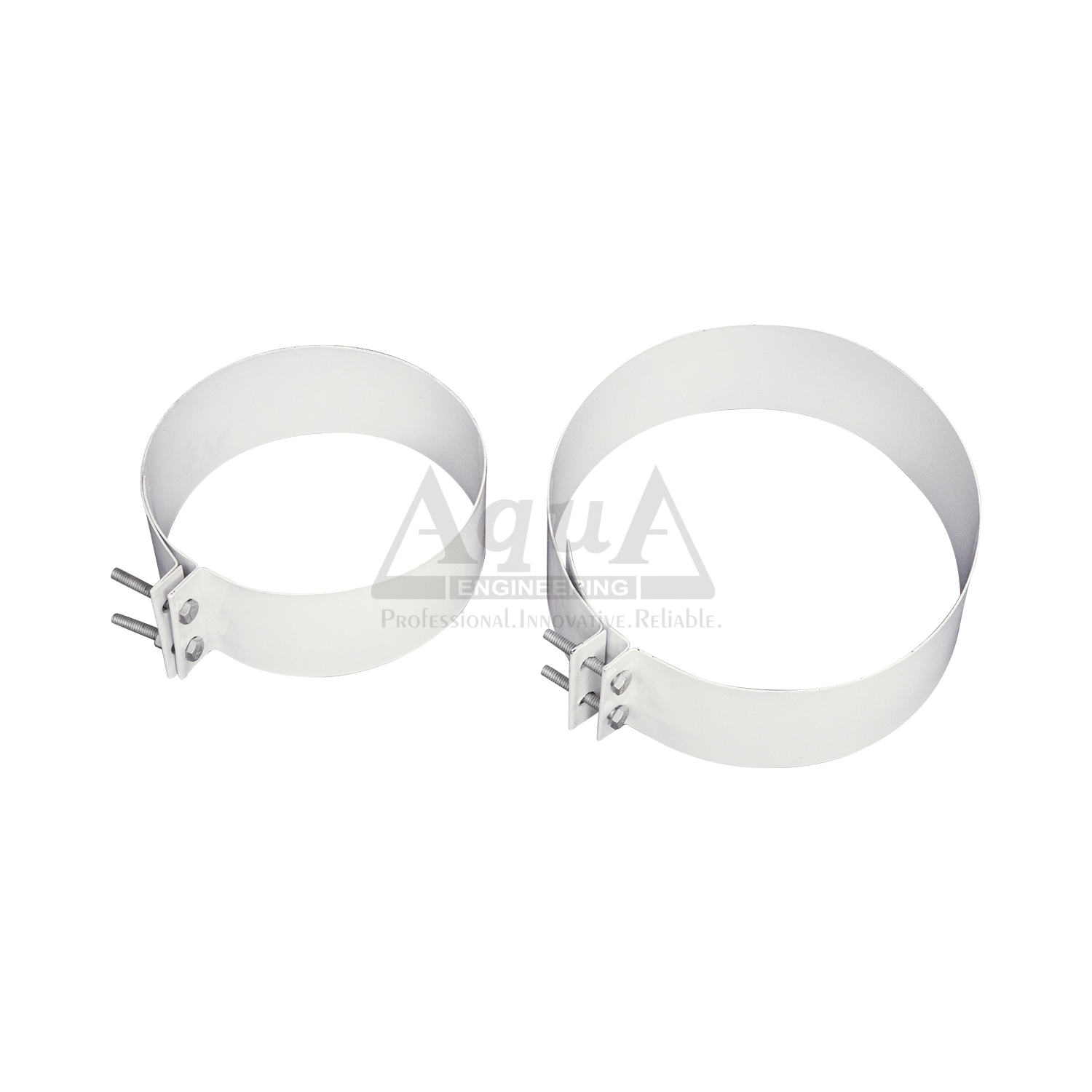

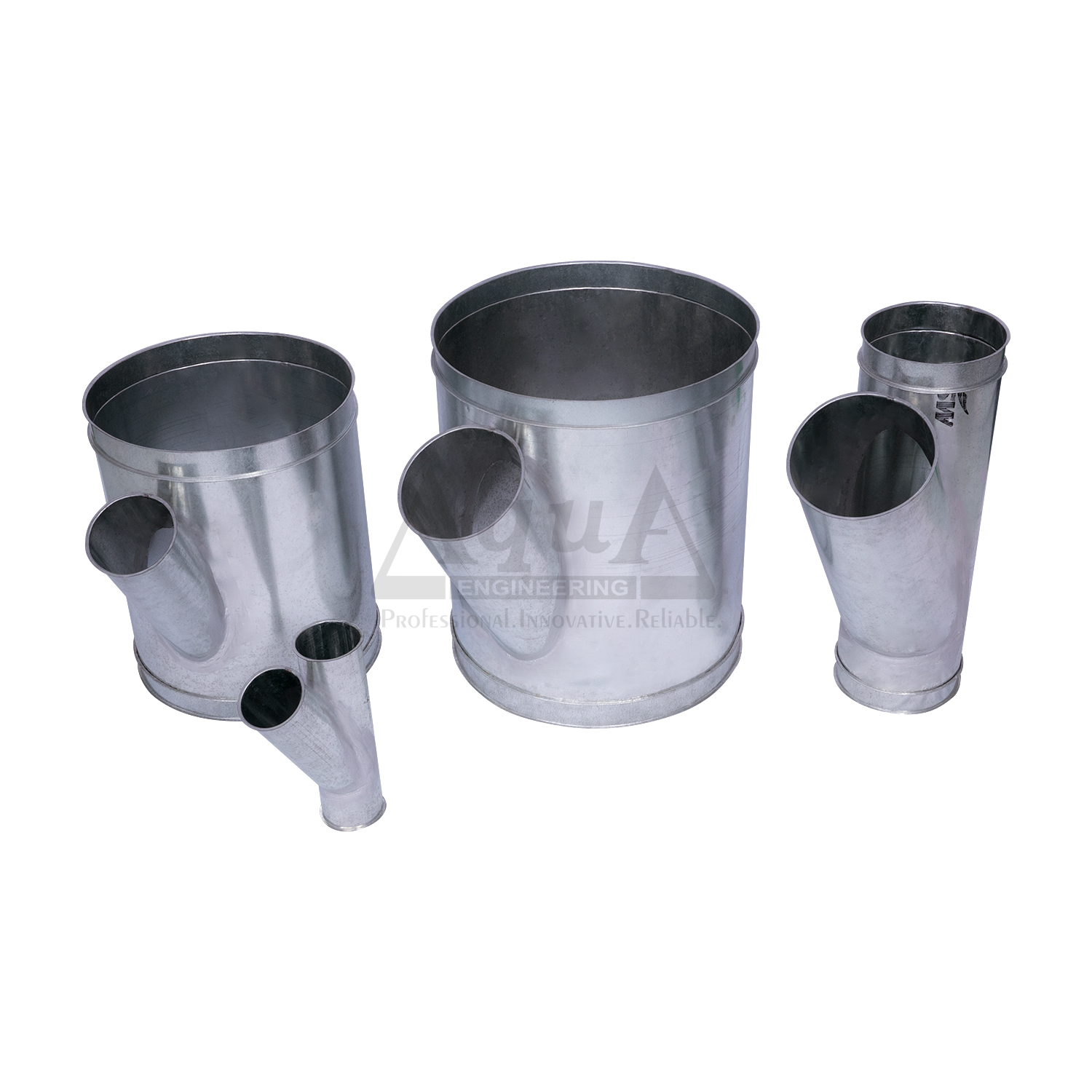

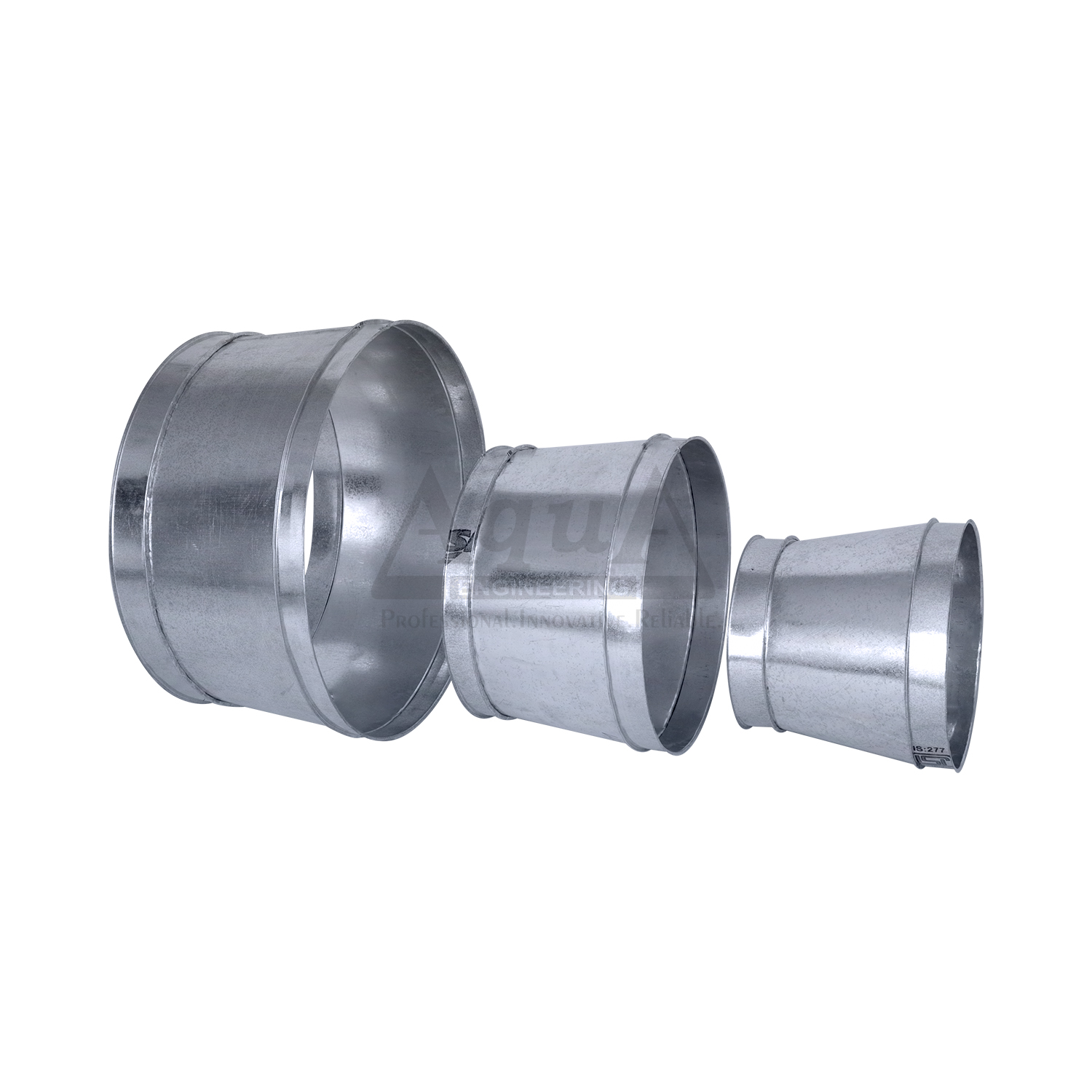

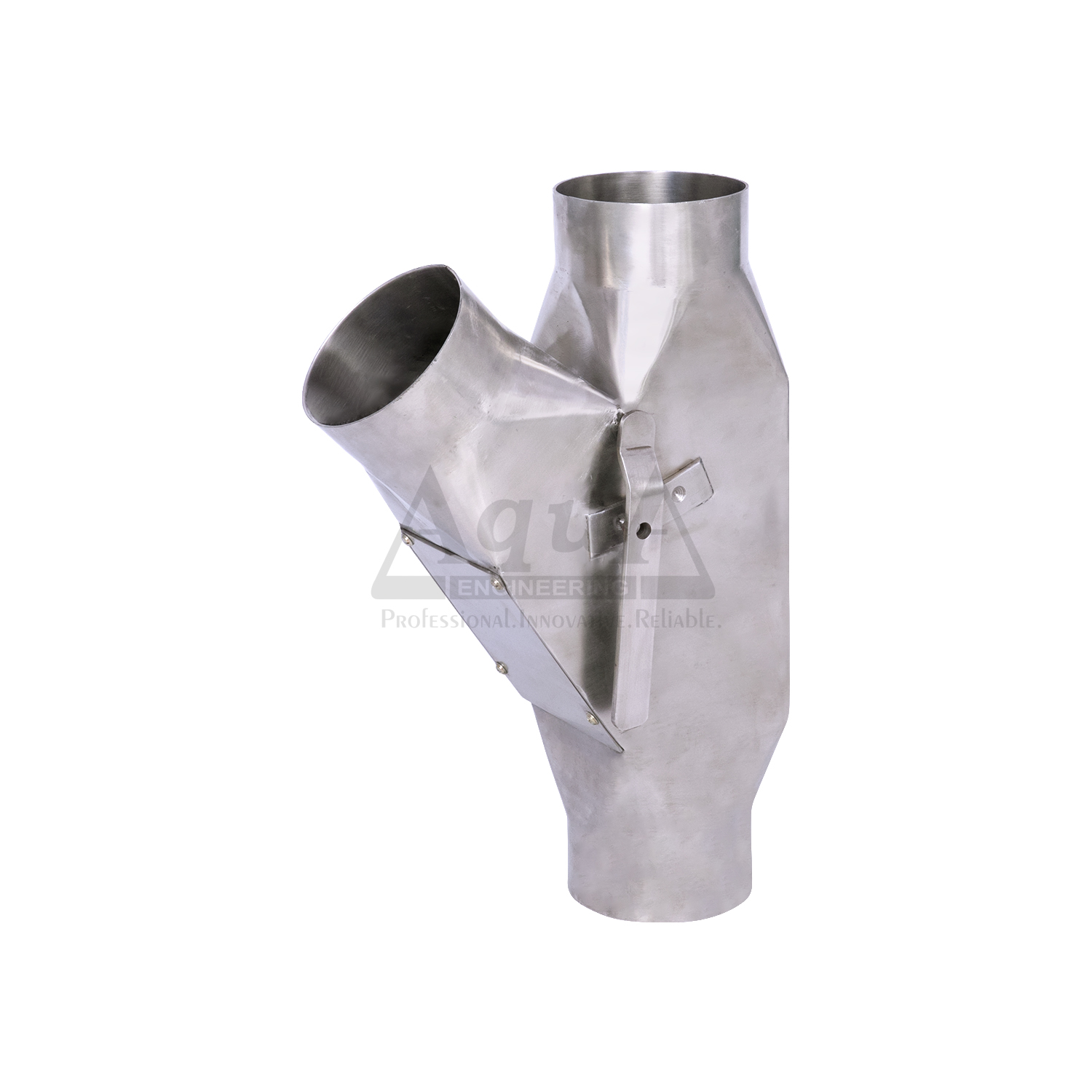

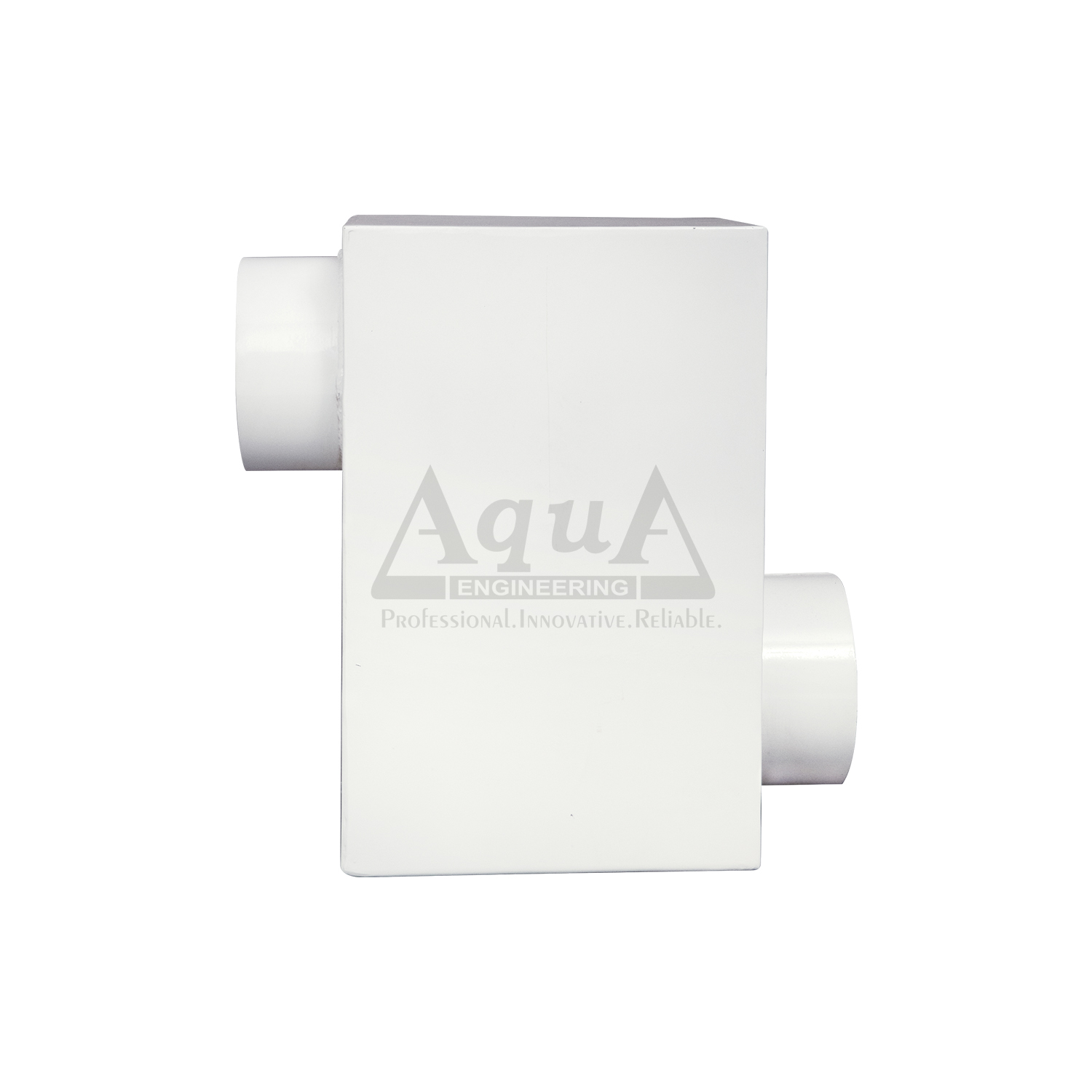

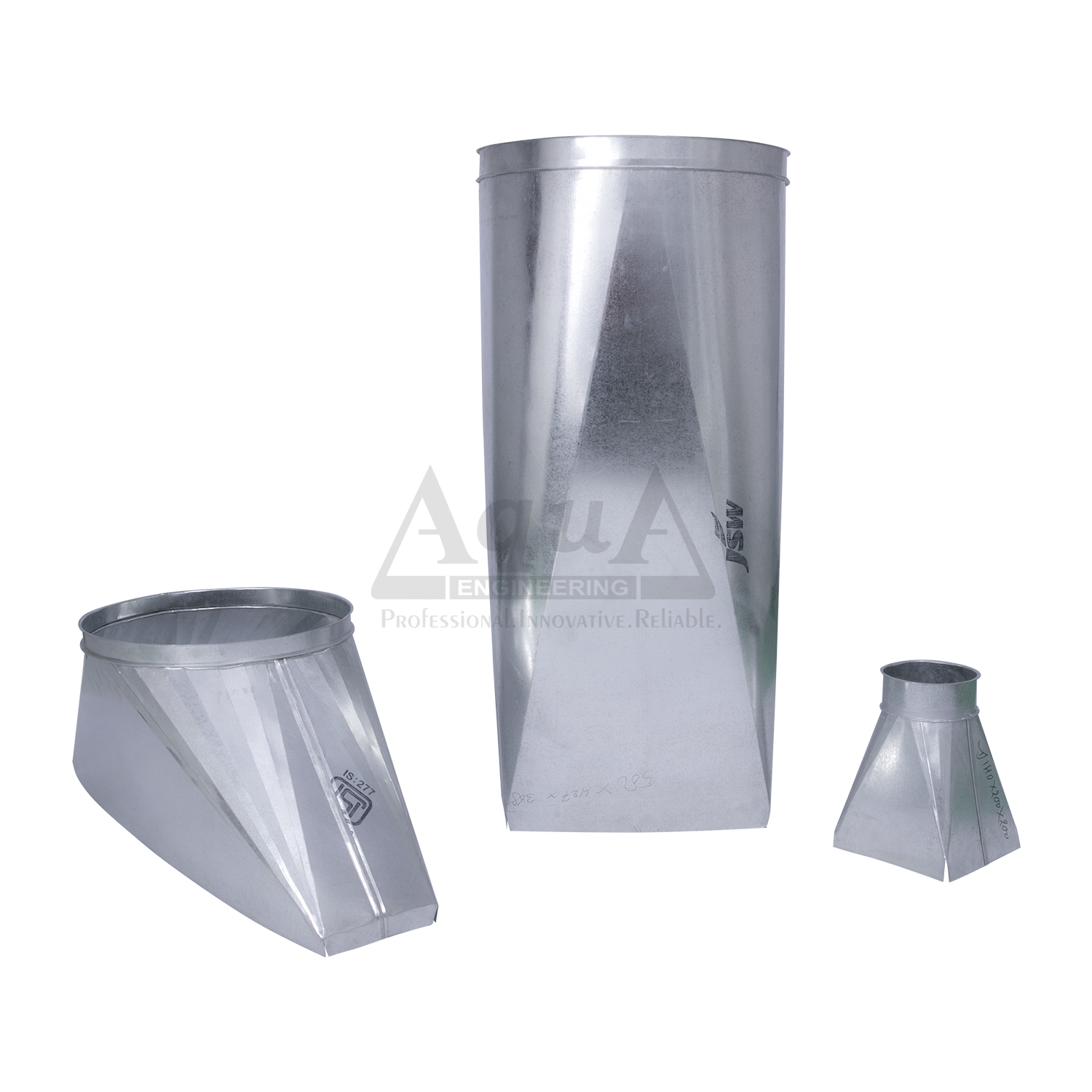

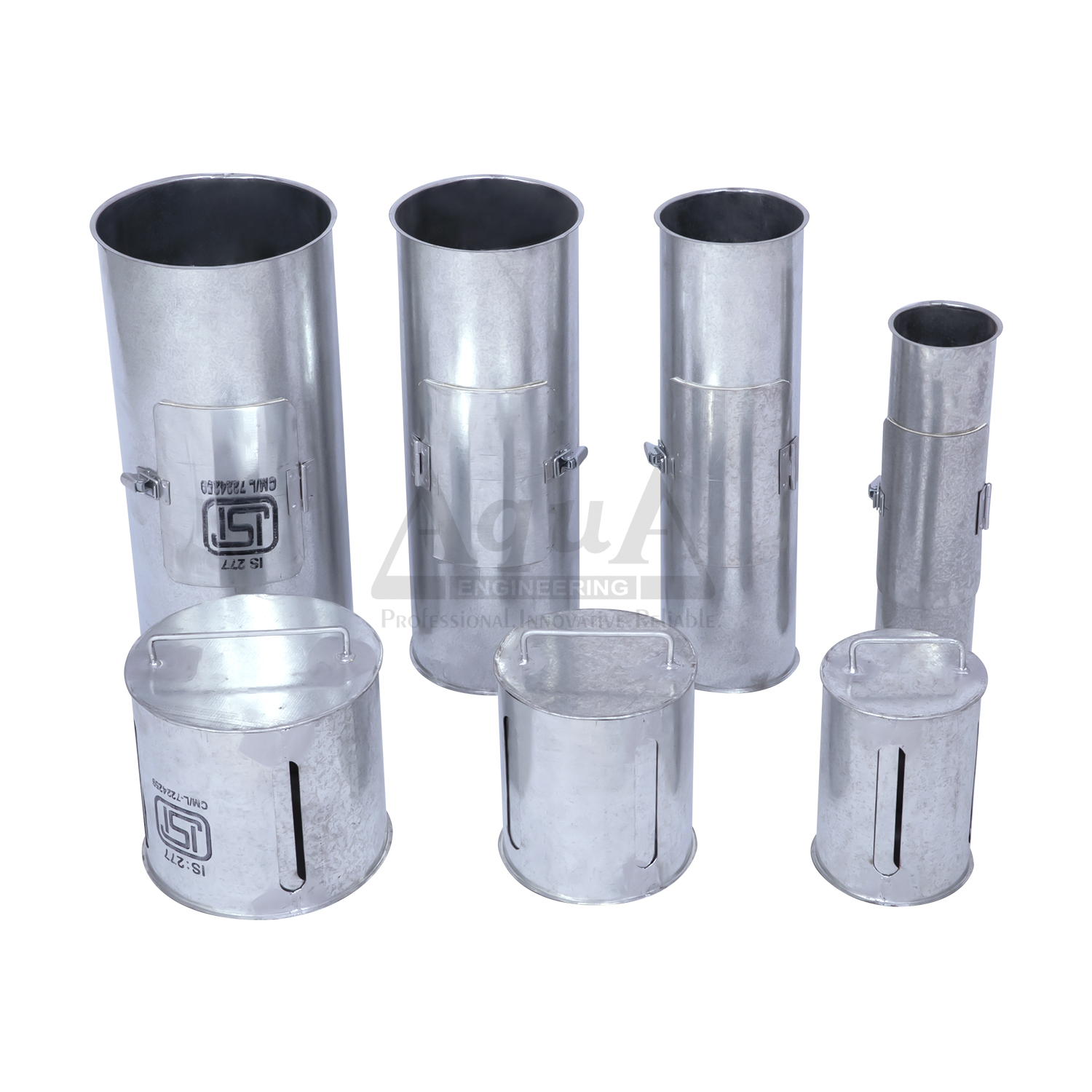

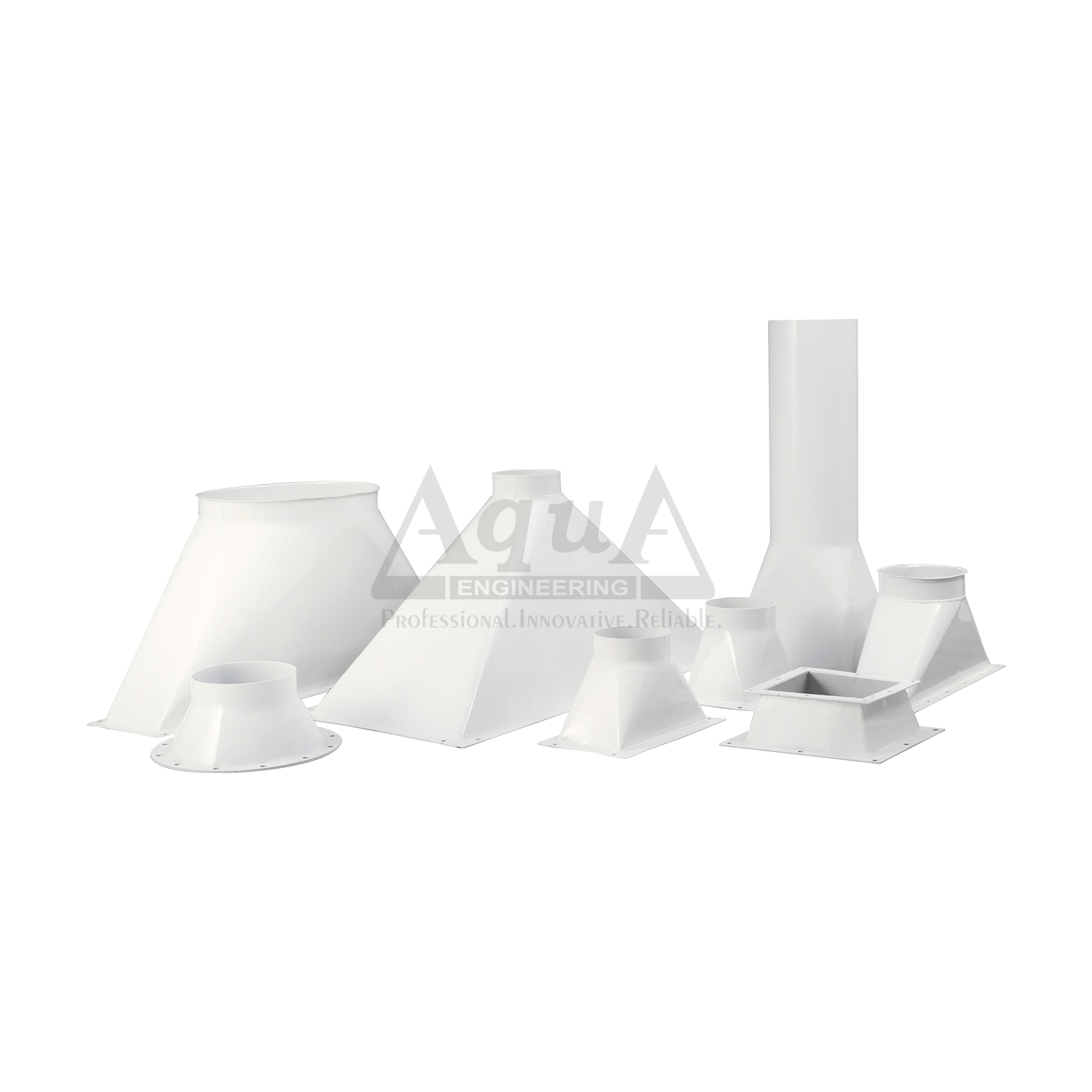

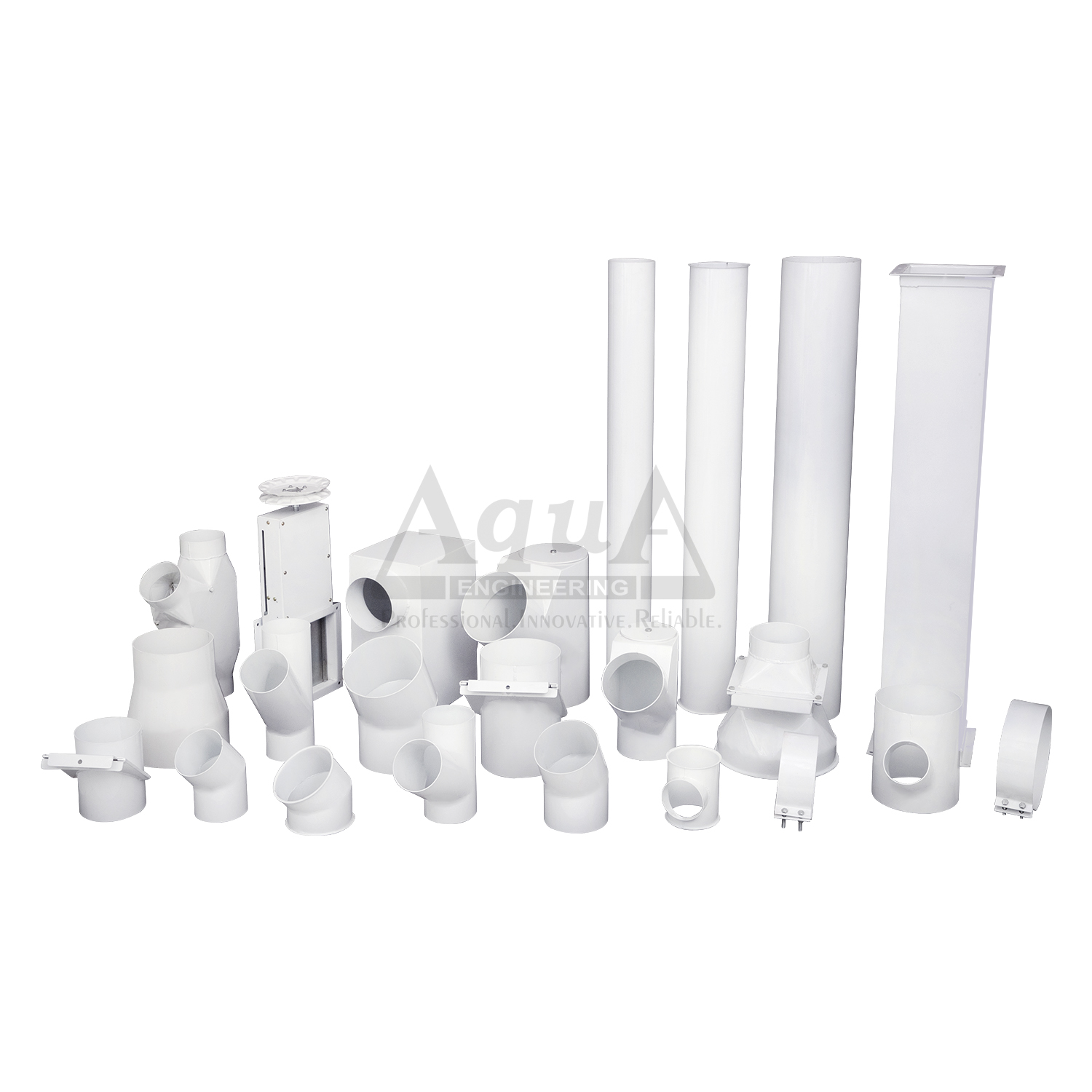

We can supply your business with bends, cones, Y-pieces, transitions, and accessories in both Mild Steel and Stainless-Steel construction to suit your needs.

Features And Benefits:

Construction: mild steel 1.0330 / stainless steel 1.4301
other qualities on request

Material Surfaces:

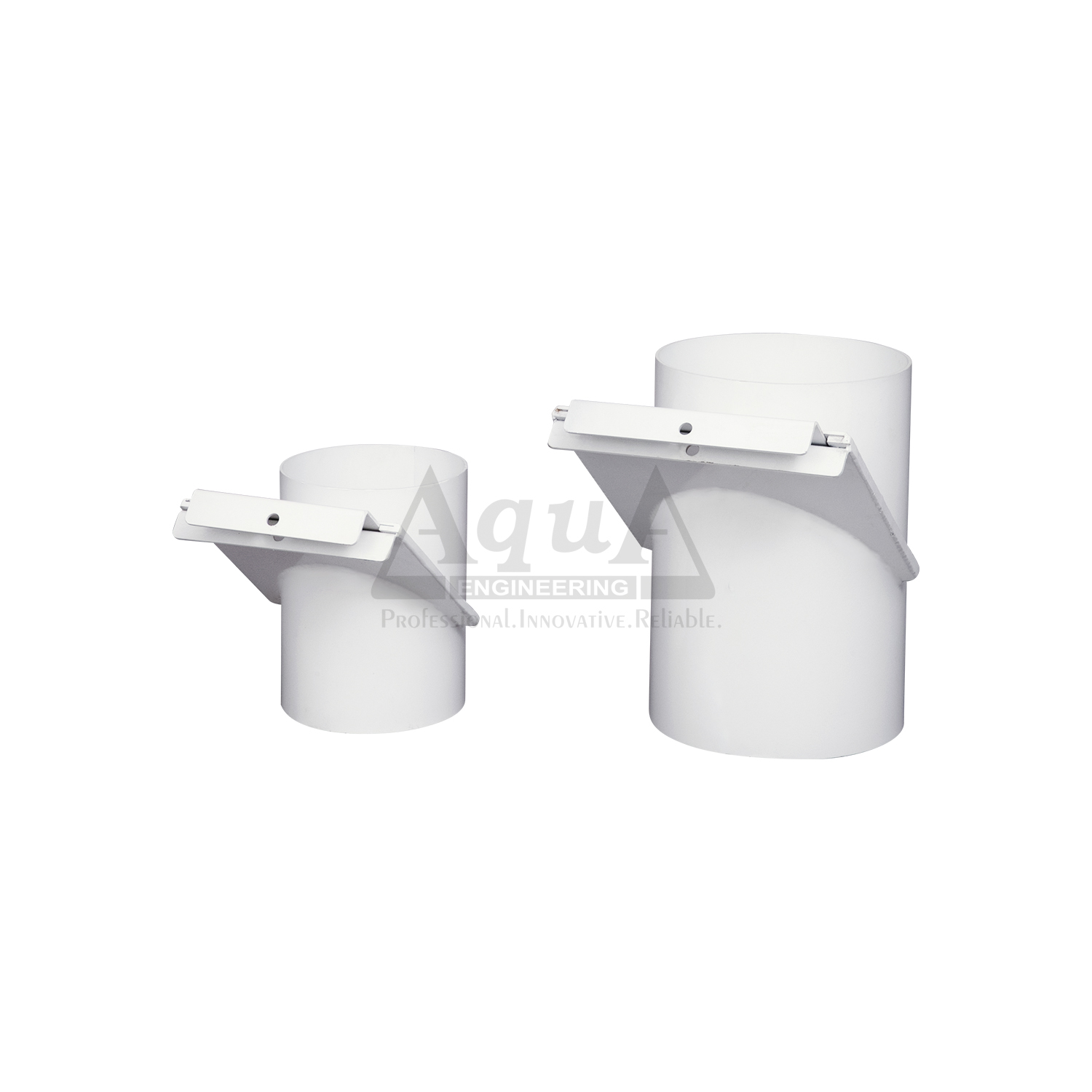

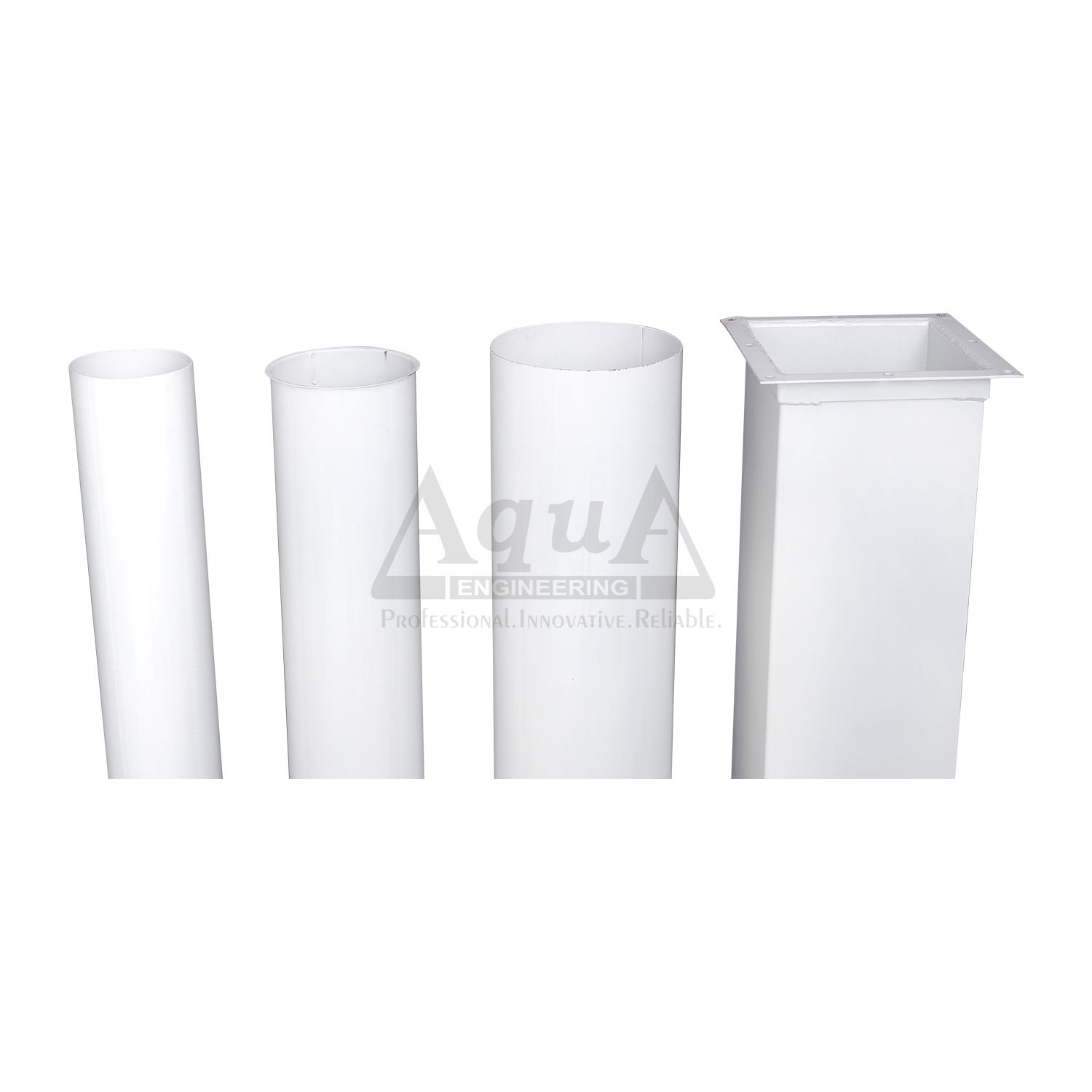

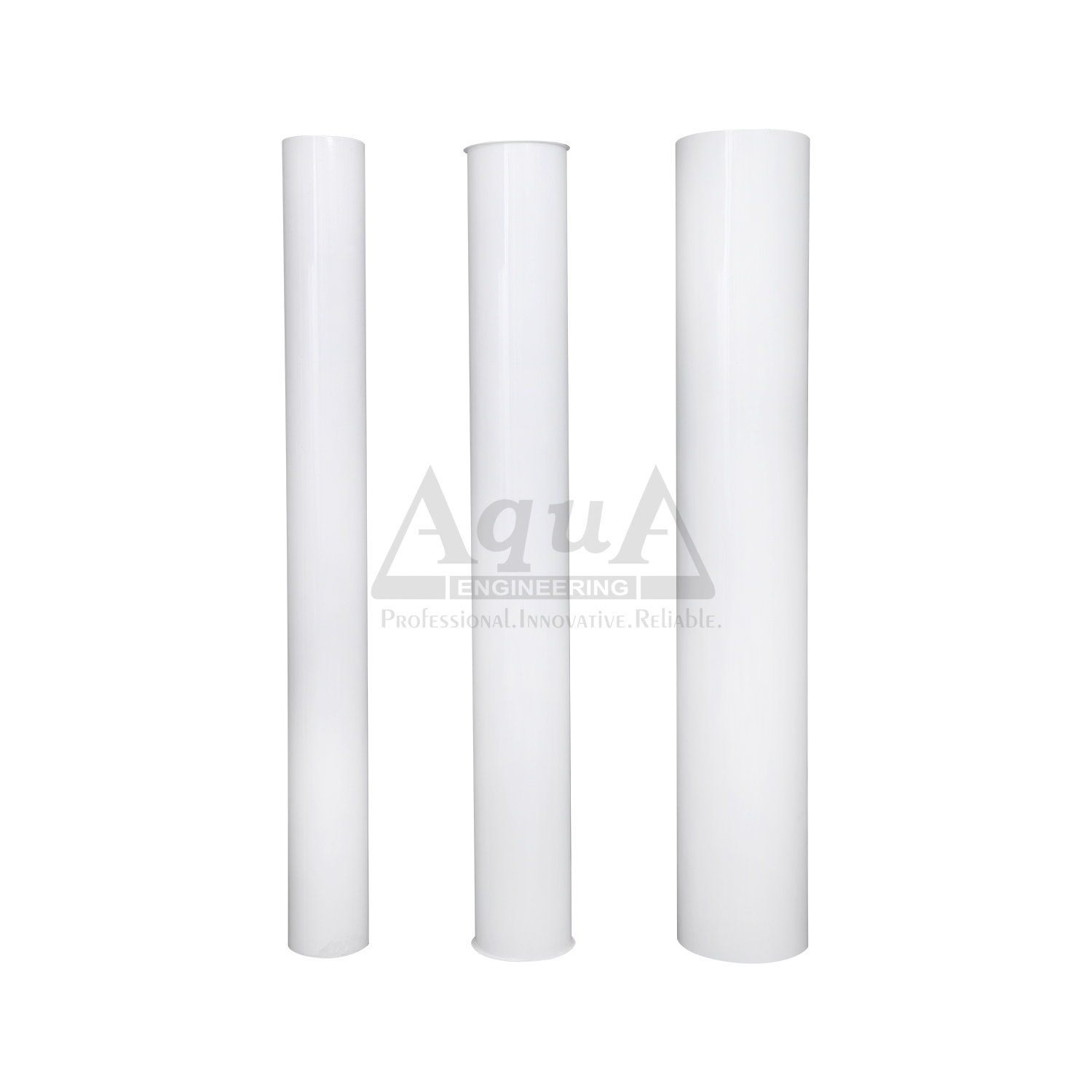

Powder Coated Steel: color, smooth, silk gloss, food safe, electrostatically conductiveother colors andqualities on request.

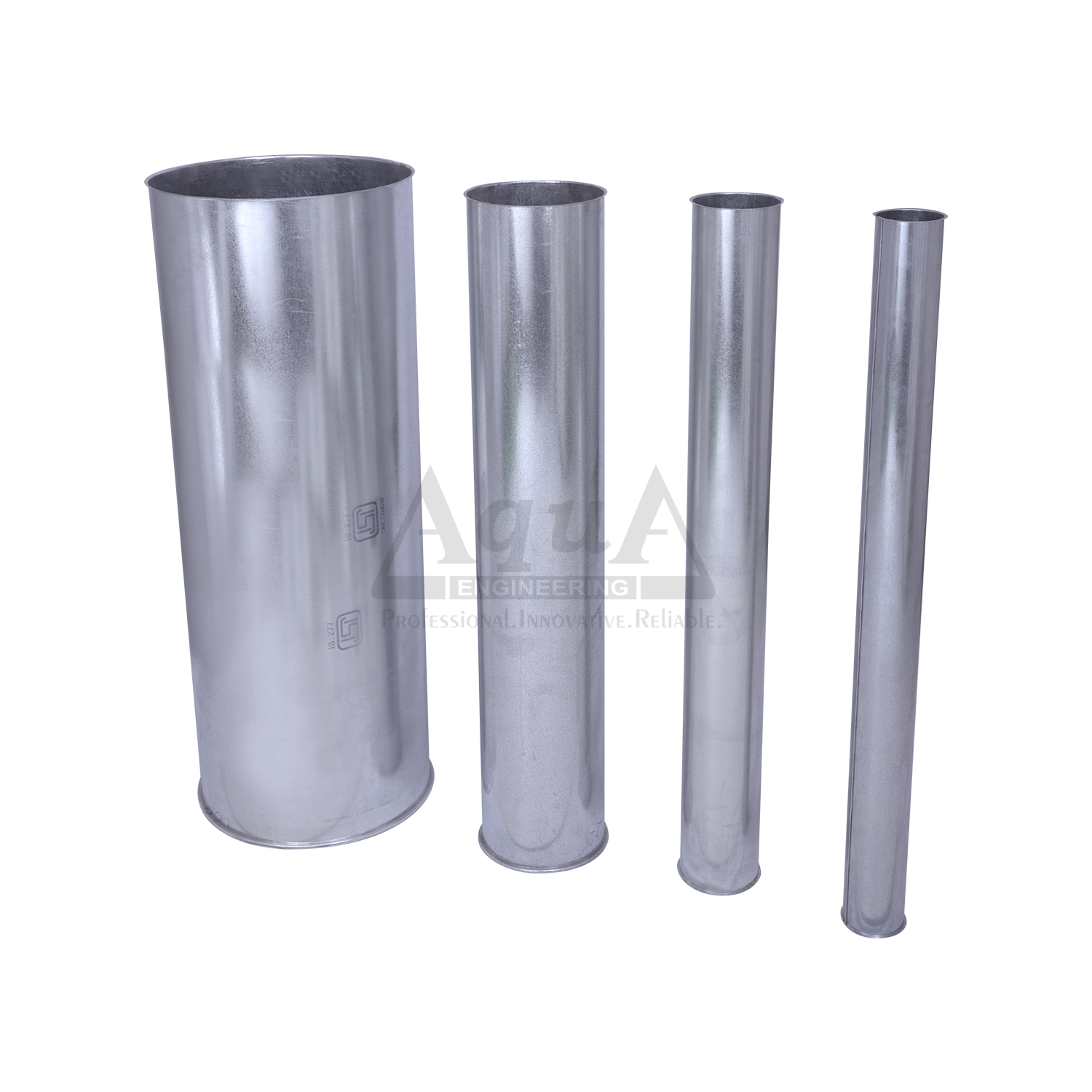

Galvanized Steel: hot-dip galvanizing according to DIN EN ISO 1461 or electro galvanizing

Shot-Blasted Stainless Steel: surface roughness 1.3 µm Pickled & passivated or electropolished versions available onDemand.

Tolerances:

Pipe Diameter and Roundness: DIN EN 10296-1 lips: 6 mm ± 1 mm lengths

Angular dimensions: DIN ISO 2768 Part 1 tolerance class v
exception: segments and transition pieces with inclination, angular tolerance ± 1° The wall thickness may vary with pressed or grinded components.
